Valley Craft Box Dumpers - 230 Volt

In stock
SKU: F89036
Regular price $8,890.00
Est. Ship Date: Monday, January 13th
Chute Size
Dump Height
Capacity
Reliability Over 50 years in the industry, demonstrating reliability.
Serving customers Serving customers across all 50 states.
Heavy-duty Products designed for heavy-duty use.
Return Policy 30 Days Return Policy*
Trusted By

Valley Craft's Box Dumper 230 Volt

Valley Craft's Box Dumper is the perfect solution to effortlessly dump material with improved efficiency while reducing employee fatigue or injury. This premium box bumper is designed to be compatible with a variety of gaylords, crates, tubs, cartons and other containers to fit your needs.

The chute comes in a variety of sizes to accommodate containers up to 48"W x 51"D, depending on model. A spring-loaded hold down bar is included to help keep containers secure, ranging from 30" to 56" in height (adjustable on 2" increments). Dump height ranges from 36" to 72" with a large load capacity from 2,000 lbs to 6,000 lbs, again depending on the model. Side walls and body are constructed of heavy duty 7 gauge steel to withstand the most rigorous use.

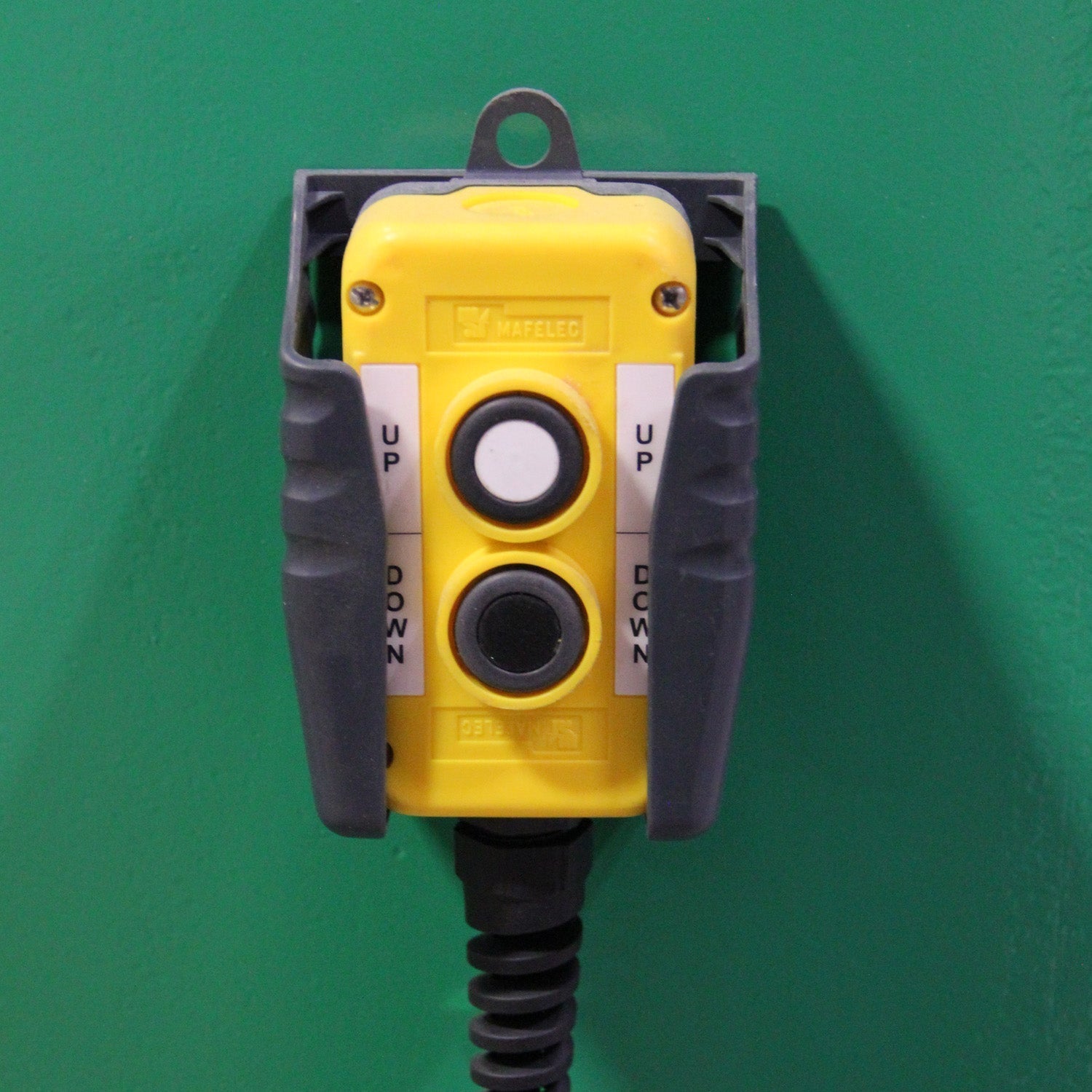

Create added safety and stability by bolting your unit directly to the floor using the predrilled mounting holes. Simply operate the unit using the convenient hand-held corded (20' pigtailed) pendant with magnetic back (pendant holder included and can be easily installed on either side of unit). Pendant completes the powered dump cycle in less than 30 seconds and has a gravity return. Added safety decals along chute create additional awareness and protection for operators and bystanders. Stop and start your unit at any point during the entire dump process. The premium single flow hydraulic control valve system ensures a smooth operation every time while balancing the load and strain on the cylinders, adding longevity to your unit. Loading containers is simple to do manually or using a standard pallet jack. Unit operates using a 3 phase/60 hz/230V, 2HP motor. Standard rating: 12 DPH. Optional side guards are available (sold separately).

Valley Craft's Box Dumpers reduce the need for manual bending and loading, and you can be confident they are built to last with a premium powder coat paint finish in green. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

  • Effortlessly dump material with improved efficiency.
  • Ideal for use with a variety of gaylords, totes, crates, tubs, cartons, and other containers.
  • Variety of sizes and configurations to fit your needs.
  • Reduce need for manual lifting, bending, and loading.
  • Operate using convenient handheld pendant with magnetic back, controlling the 3 phase 60 hertz, 230 volt motor (2HP).
  • Powered dump cycle, with gravity return.
  • Unit bolts directly to the floor to ensure safety and stability throughout operation.
  • Smooth operation utilizing dual flow hydraulic control valve system.
  • Safely stop and start at any point during dump cycle.
  • Dump heights ranging from 36" to 72" (36", 48", 60", 72").
  • 2,000/4,000/6,000 lb. capacities.
  • Heavy duty 7 gauge steel construction.
SKU Size (W x D x H) Chute Size Capacity Dump Height
F89036 51" x 50" x 66" 36" X 36" 2,000 lb 36"
F89035 51" x 62" x 66" 36" X 36" 4,000 lb 36"
F89034 51" x 62" x 66" 36" X 36" 6,000 lb 36"
F89033 51" x 50" x 72" 36" X 36" 2,000 lb 48"
F89032 51" x 62" x 72" 36" X 36" 4,000 lb 48"
F89031 51" x 62" x 72" 36" X 36" 6,000 lb 48"
F89030 51" x 50" x 72" 36" X 36" 2,000 lb 60"
F89029 51" x 62" x 72" 36" X 36" 4,000 lb 60"
F89028 51" x 62" x 72" 36" X 36" 6,000 lb 60"
F89027 51" x 50" x 84" 36" X 36" 2,000 lb 72"
F89026 51" x 62" x 84" 36" X 36" 4,000 lb 72"
F89025 51" x 62" x 84" 36" X 36" 6,000 lb 72"
F89024 66" x 63" x 66" 48" x 51" 2,000 lb 36"
F89023 66" x 63" x 66" 48" x 51" 4,000 lb 36"
F89022 66" x 63" x 66" 48" x 51" 6,000 lb 36"
F89021 66" x 63" x 72" 48" x 51" 2,000 lb 48"
F89020 66" x 63" x 72" 48" x 51" 4,000 lb 48"
F89019 66" x 63" x 72" 48" x 51" 6,000 lb 48"
F89018 66" x 63" x 72" 48" x 51" 2,000 lb 60"
F89017 66" x 63" x 72" 48" x 51" 4,000 lb 60"
F89016 66" x 63" x 72" 48" x 51" 6,000 lb 60"
F89015 66" x 62" x 84" 48" x 51" 2,000 lb 72"
F89014 66" x 62" x 84" 48" x 51" 4,000 lb 72"
F89013 66" x 62" x 84" 48" x 51" 6,000 lb 72"
