Product Overview

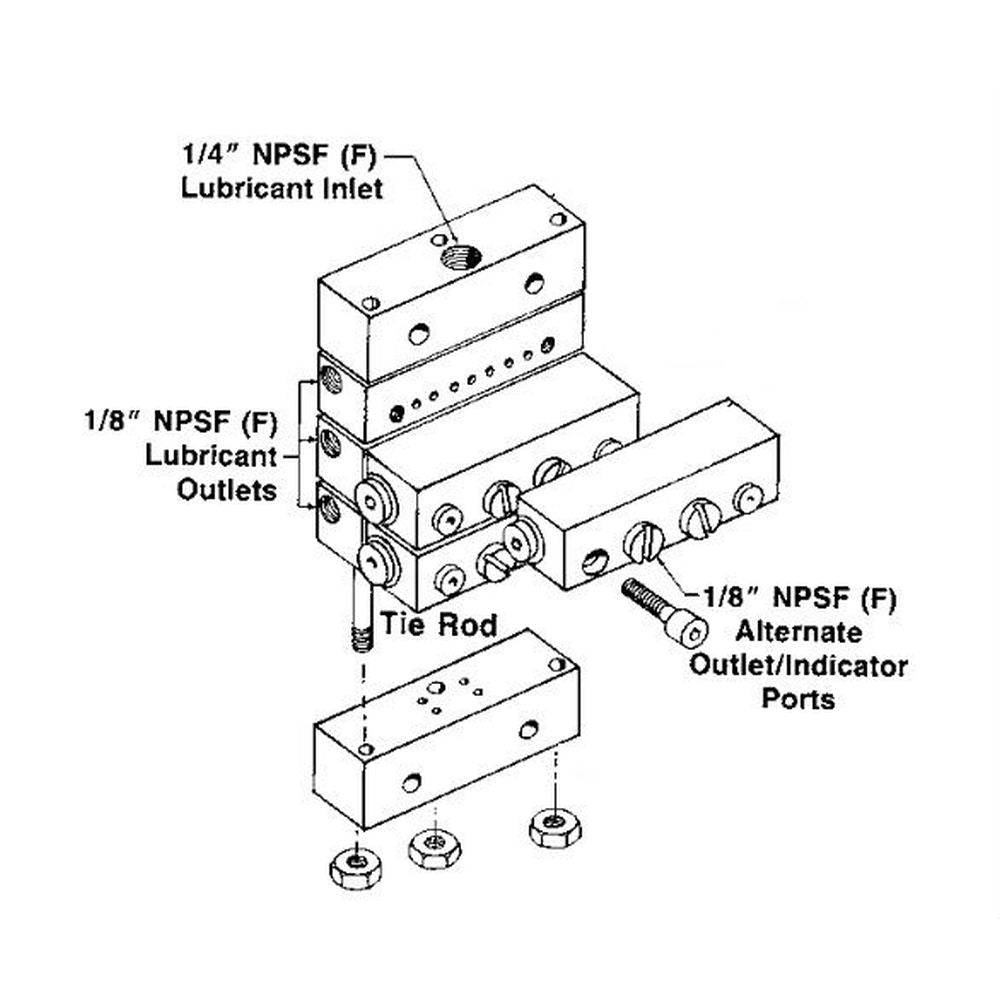

Lincoln Tie Rod for Modular UV Divider Valves w/ 3 Sections UV divider valves are designed to meter oil or grease in automatic or manual systems installed on all types of industrial machinery. Segmented baseplate assembly contains all inlet and outlet connections. Alternate outlet ports are located on the face of the divider valve which may be used for installation of performance indicators. Here are links to the modular UV Divider Valves ( 882051 , 882052 ), Inlet Sections ( 87918 ), Intermediate Sections ( 87919 ) and End Sections ( 87920 )
Key source specifications include Inlet Section Model: 87918; Inlet Section Thread: 1/4" NPSF (f); Model 250290; Maximum Oper. Pressure: 3500 psi/240 bar.
Key Features
- Inlet Section Model: 87918
- Inlet Section Thread: 1/4" NPSF (f)
- Maximum Oper. Pressure: 3500 psi/240 bar
- Intermediate Section Model: 87919
- Intermediate Section Thread: 1/8" NPSF (f)
- Material: Yellow chromate plated steel
Ideal For
Choose this product if you need:
- Replacement, repair, or installation work involving Modular UV Divider Valves (3 Section)
Not Ideal For
Not ideal for equipment outside the listed Modular UV Divider Valves (3 Section) compatibility, pressures above the listed 3500 psi/240 bar maximum, or connections that do not match the listed inlet section thread of 1/4" NPSF (f).
Product Details
Review the product details below to confirm the inlet section model, inlet section thread, model / mpn, maximum oper. pressure, intermediate section model match your equipment or lubrication system.
Shared Product Details
| Model / MPN | 250290 |
| Brand | Lincoln |
| Maximum Lube Points/Assembly | 16 |
| Maximum Oper. Pressure | 3500 psi/240 bar |
| Inlet Section Model | 87918 |
| Inlet Section Thread | 1/4" NPSF (f) |
| Intermediate Section Model | 87919 |
| Intermediate Section Thread | 1/8" NPSF (f) |
| Material | Yellow chromate plated steel |
| Seal Construction | Flourelastomer |
| Performance Indicator Port | 1/8" NPSF (f) |
Frequently Asked Questions
What does this fit?
The supplied product data identifies it for Modular UV Divider Valves (3 Section).
What model number should I verify?
Confirm model or manufacturer part number 250290.
What pressure is listed?
The supplied specifications list 3500 psi/240 bar.
