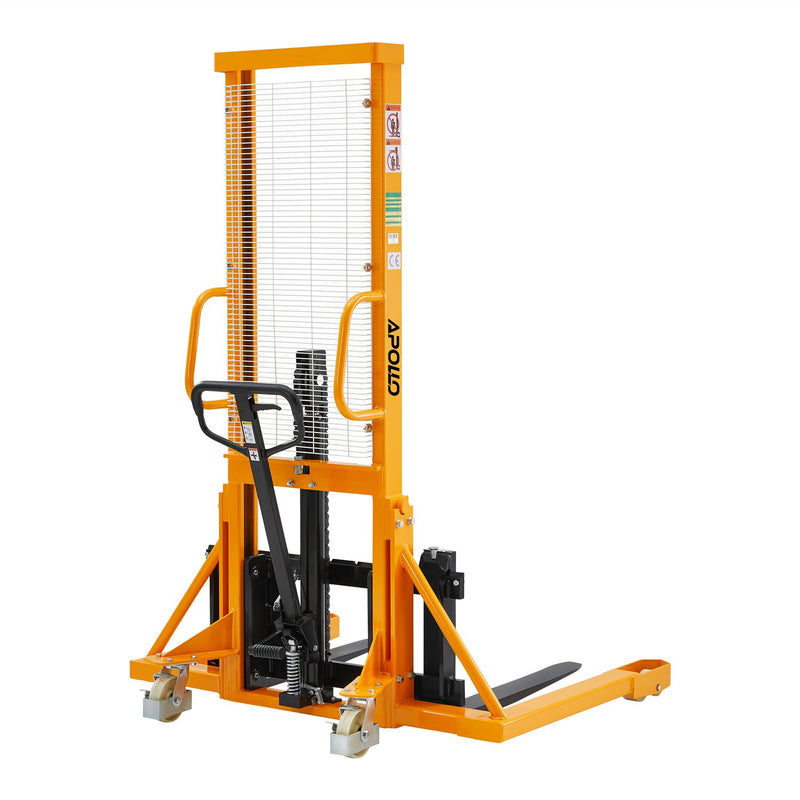

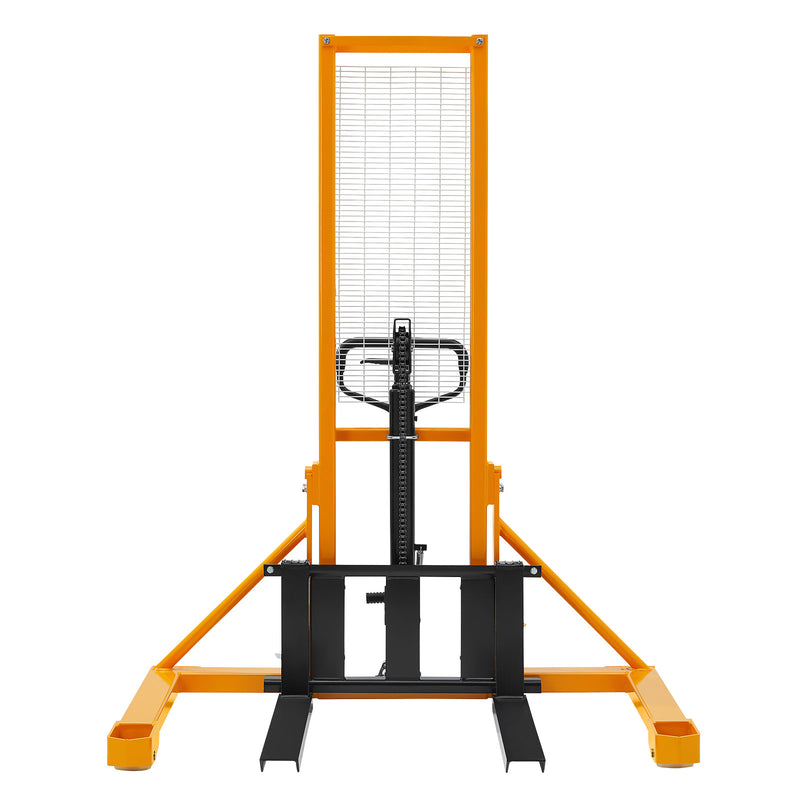

Straddle Legs Pallet Stacker, 1100-2200 lbs Capacity, 63" Lift Height

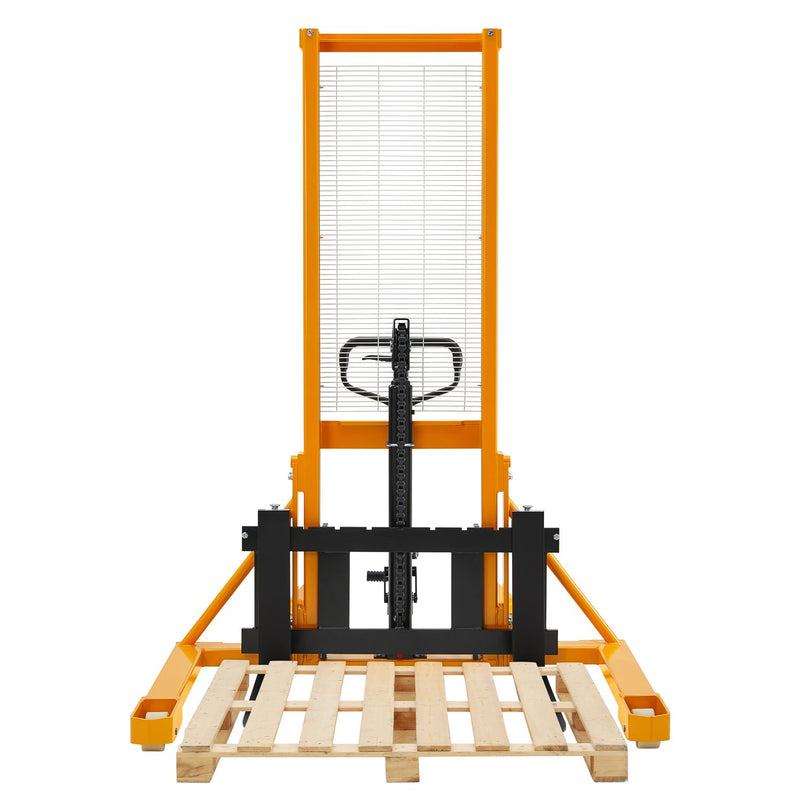

This straddle-legs pallet stacker is designed for efficient pallet stacking and positioning, as well as stocking and refilling shelves. With capacities ranging from 1100 lbs to 2200 lbs and a lifting height of 63", it offers a versatile solution for various material handling tasks.
The stacker features a compact design that is perfect for maneuvering in tight spaces. Its high-quality steel mast and strong steel construction ensure rigidity and durability. The high-efficiency pumps make control easier, allowing for smooth operation with both foot pump and handle controls.
Safety features include a metal grid that protects the user from lift chains, a safety wheel guard, and a brake system to ensure stability during operation. The adjustable forks provide flexibility in handling different load sizes.
Specifications
| Model No. | Capacity | Lifting Height | Wheel Diameter | Weight (lbs) |
|---|---|---|---|---|
| A-3004 | 1100 lbs | 63" | 5.8" | 490 |
| A-3005 | 2200 lbs | 63" | 5.8" | 647 |
Dimensions for A-3004
- Overall Width: 60"
- Overall Length: 52.7"
- Load Center: 19.7"
- Recommended Aisle Width: 77.8"
- Turning Radius: 47.2"
Mast
- Lifting Height: 63"
- Mast Lowered Height: 78.7"
- Mast Extended Height: 82.7"
Forks
- Adjustable Width: 7.9-29.3"
- Thickness: 1.9"
- Width: 3.94"
- Length: 31.5"
- Fork Lowered Height: 2.8"
Straddle Legs
- Inner Width: 51.1"
- Height: 4.3"
Dimensions for A-3005
- Overall Width: 58"
- Overall Length: 51.2"
- Load Center: 19.7"
- Recommended Aisle Width: 77.7"
- Turning Radius: 47.2"
Mast
- Lifting Height: 63"
- Mast Lowered Height: 80.7"
- Mast Extended Height: 84.8"
Forks
- Adjustable Width: 7.9-37.4"
- Thickness: 1.2"
- Width: 3.94"
- Length: 31.5"
- Fork Lowered Height: 2.8"
Straddle Legs
- Inner Width: 49.2"
- Height: 4.3"
Features
- Compact design for pallet stacking and positioning
- High-quality steel mast and strong steel construction
- High-efficiency pumps for easier control
- Metal grid to protect the user from lift chains
- Safety wheel guard and brake system
- Foot pump and handle operation for raising and lowering loads
- Foot Operated Pump: Lift Height nearly 1" per stroke
