Handle-It
Spec-Sheet Product Sizing Chart

SA-50 Semi-Automatic Orbital Wrap Machine

In stock
SKU: OWM-SA-50
$15,788.00

Please call us at (866) 734-8848 to place your order

Est. Ship Date: Call for Availability
Reliability Over 50 years in the industry, demonstrating reliability.
Serving customers Serving customers across all 50 states.
Heavy-duty Products designed for heavy-duty use.
Return Policy 30 Days Return Policy*
Trusted By

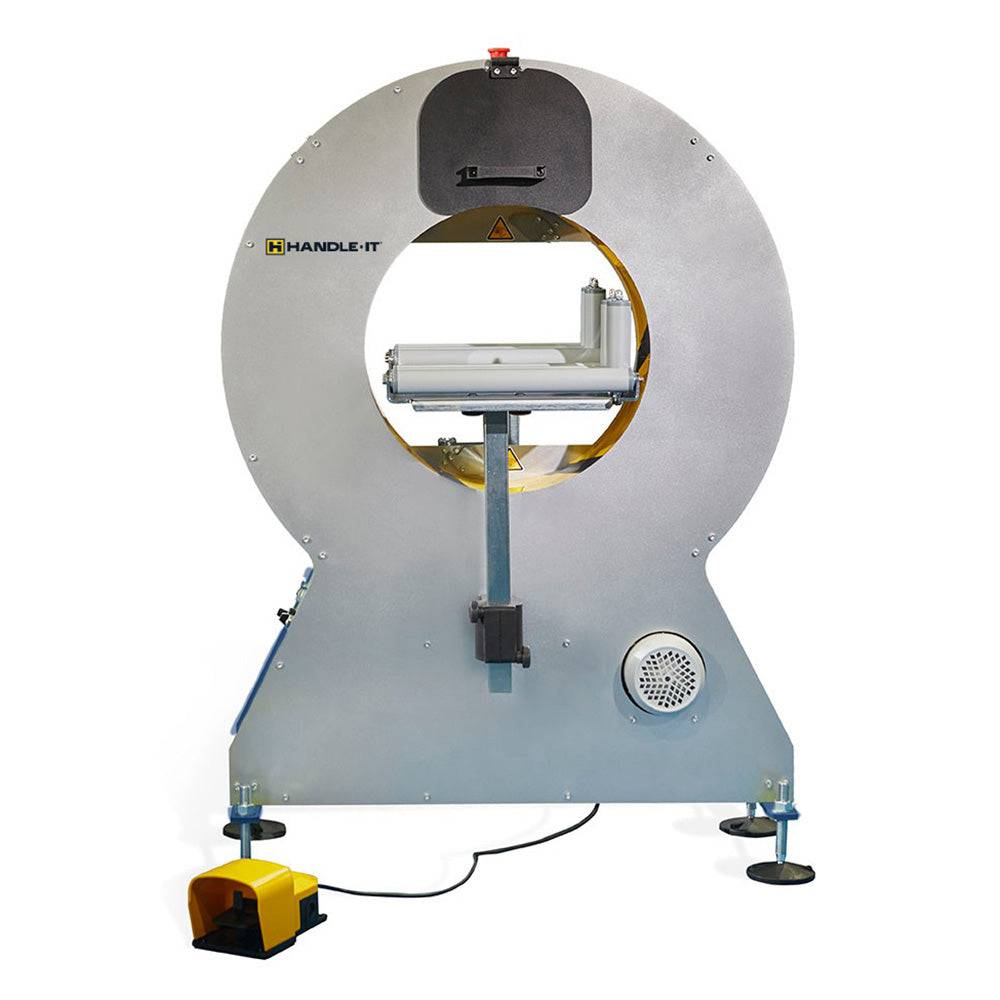

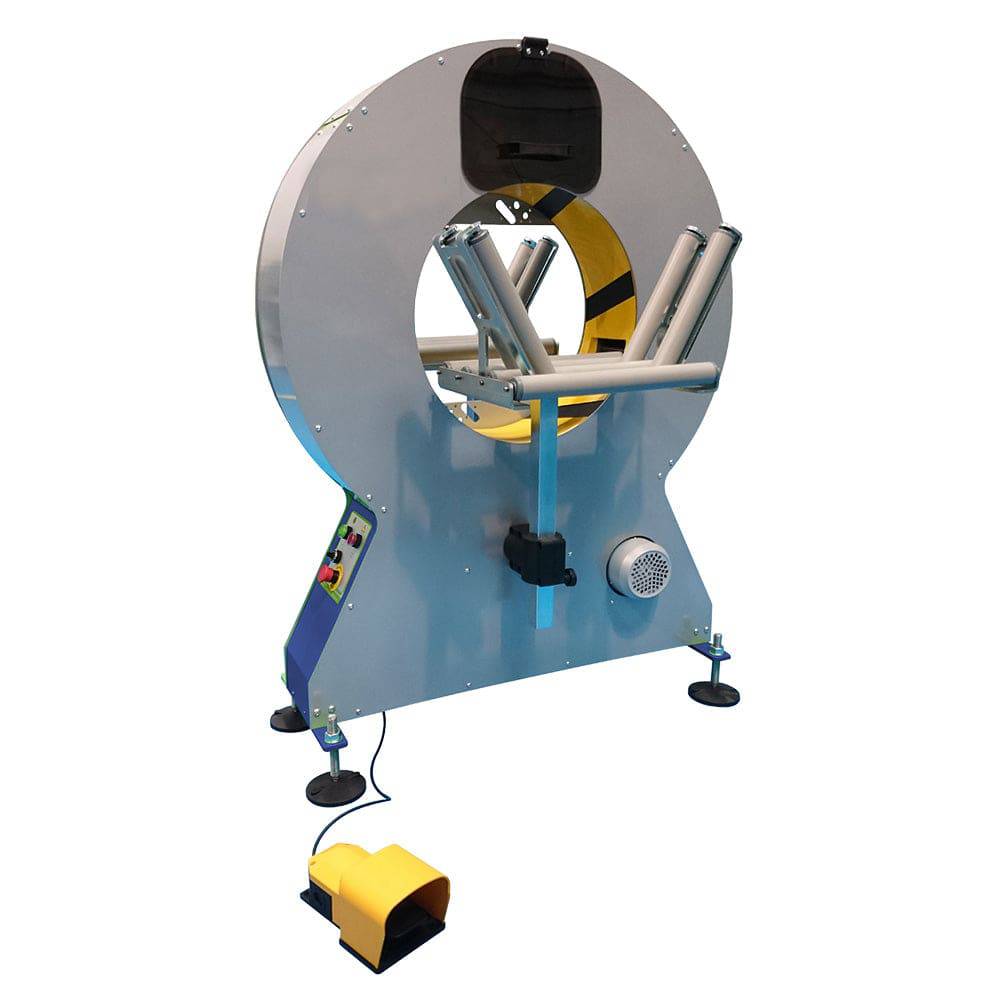

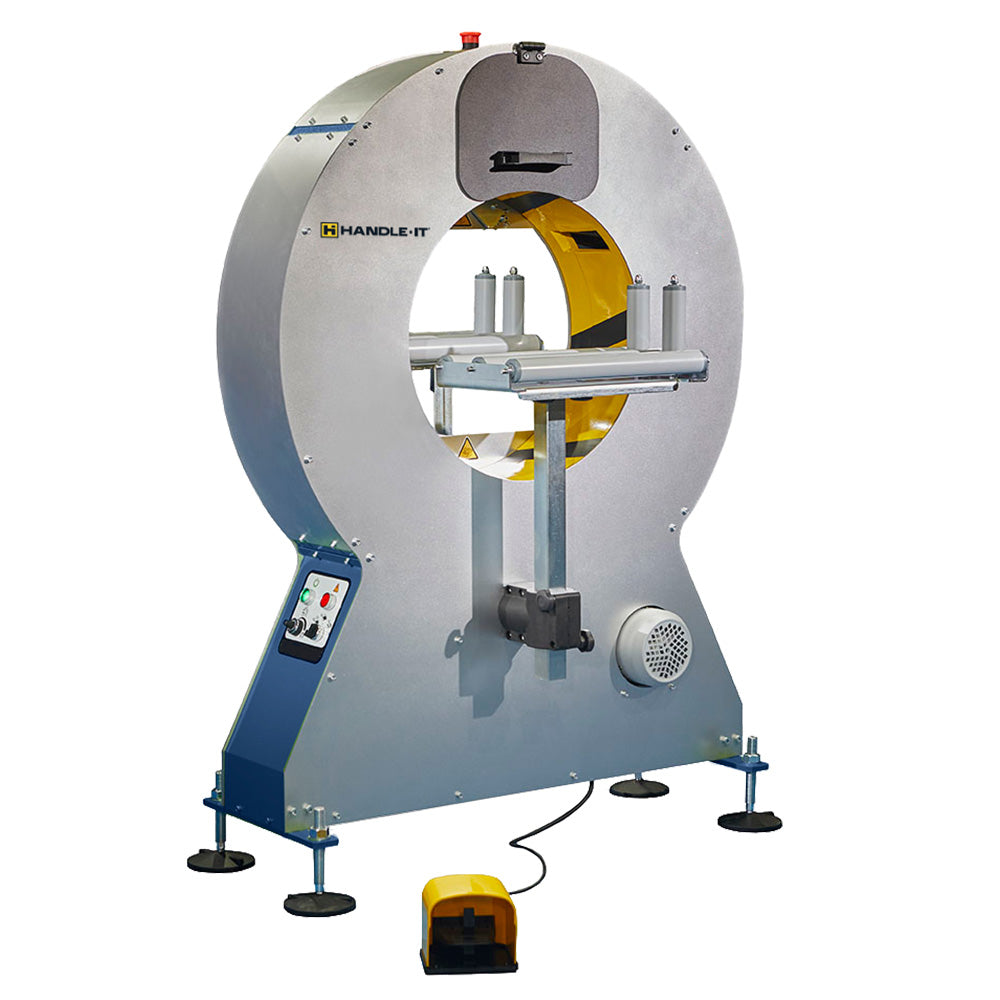

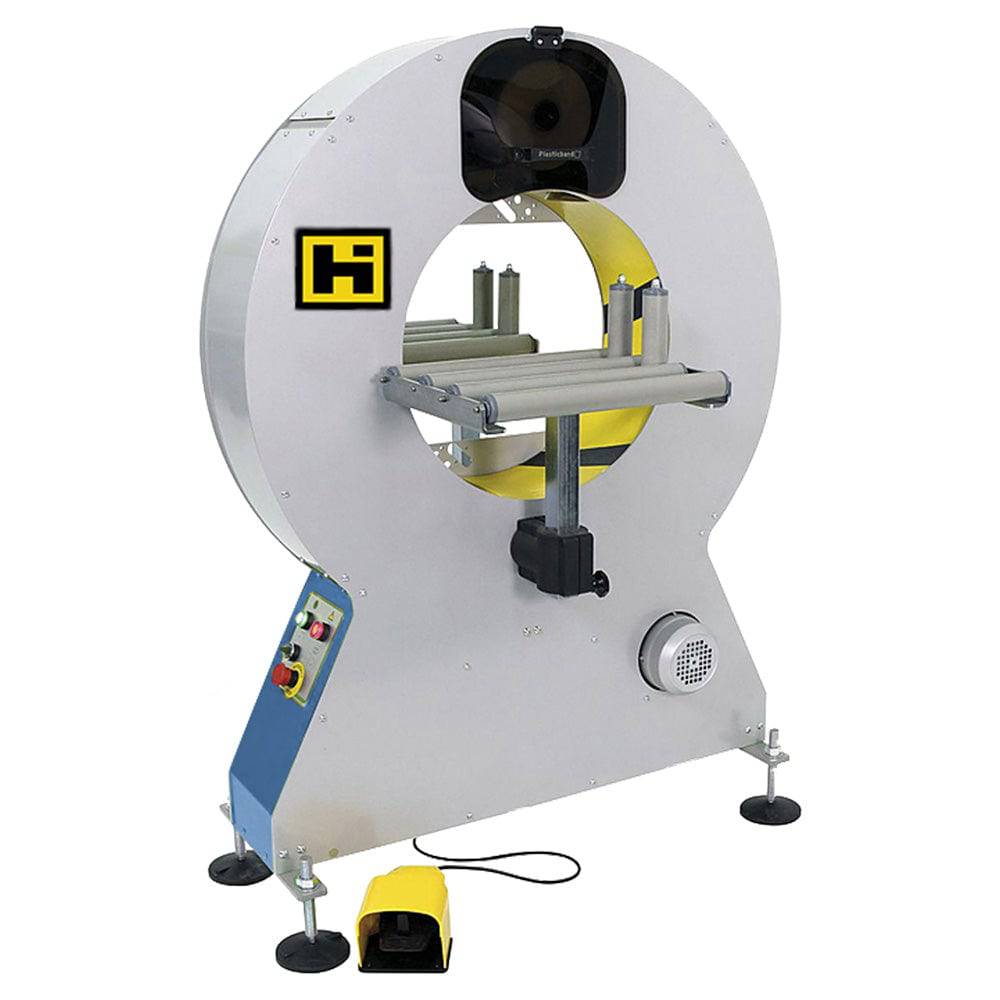

Handle-It SA-50 Semi-Automatic Orbital Wrap Machine

Semi-automatic orbital wrapper used for bundling product by manually feeding material through the machine and packaging with stretch film. Also known as a horizontal stretch wrapper, this machine is ideal for warehouse and manufacturing use. The model OWM-SA-50 can be used for products like wood molding, flooring, profiles, aluminum bars, pipes, firewood, tubes, blinds, or any other small product needing to be bundled.

Standard dual film reel delivery system gives you faster throughput

Double automatic film cutting and clamp standard with blade protection

Simple speed and film tension adjustment

110v standard plug with a foot pedal control

Performance & Specifications

  • 50 cm wide opening
  • 4" wide machine bundling film with 1.5" core

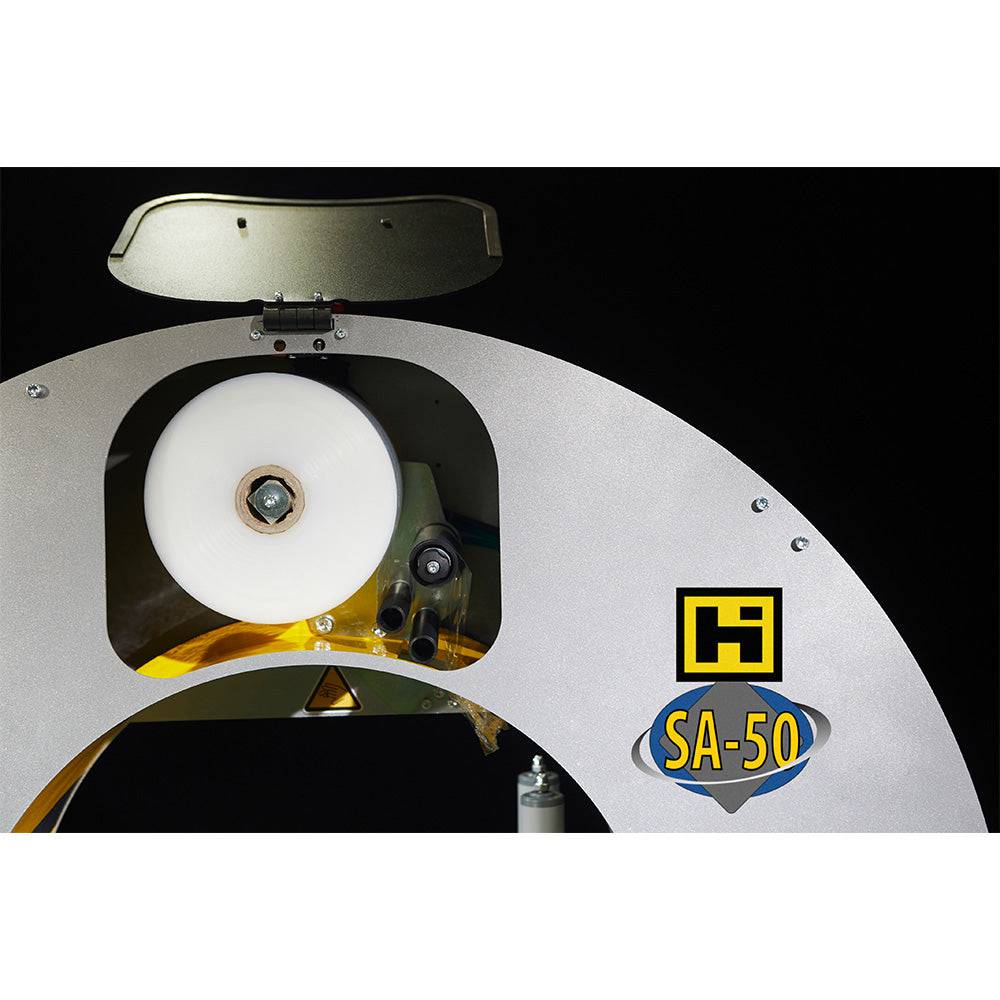

  • Double reel dispenser head, faster cycle times
  • Infeed & outfeed gravity rollers table with vertical rollers

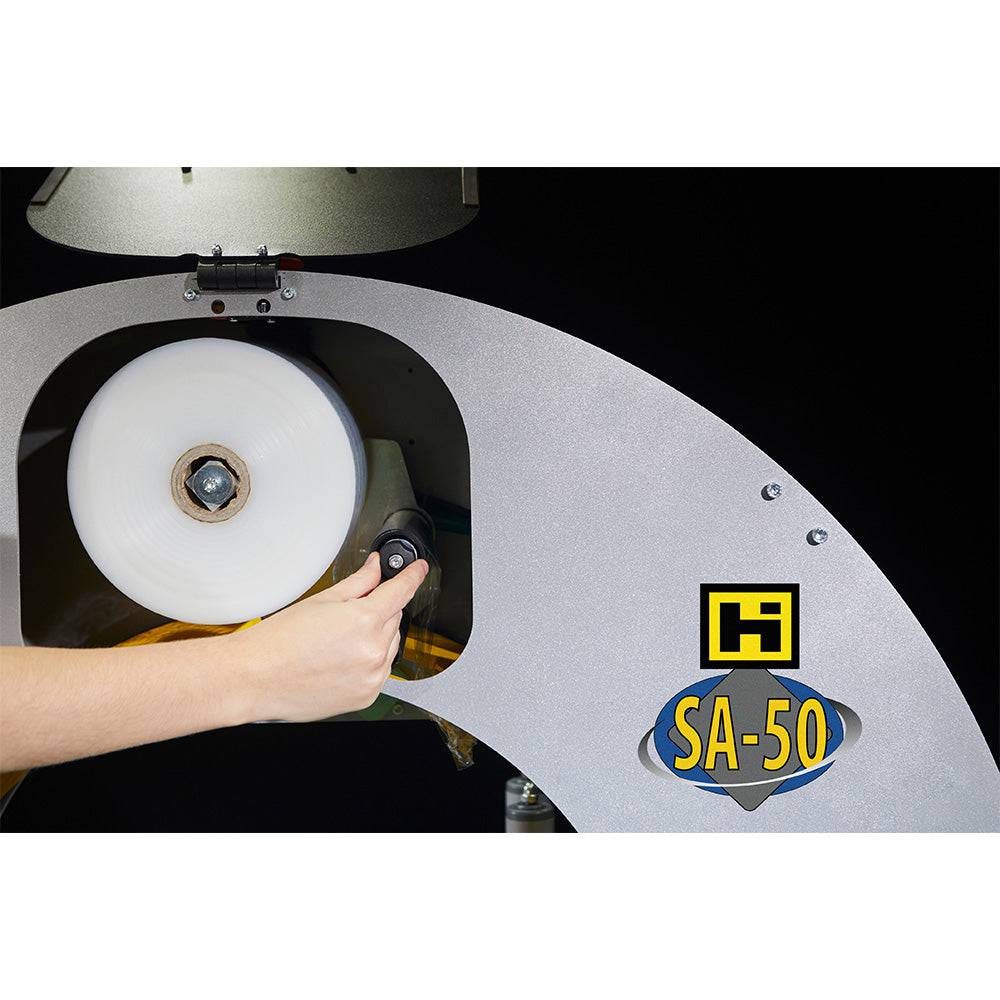

  • Fast reel changing; no tools required
  • Adjustable film tension with consistent force
  • Safety features built into the cutting system and while changing reels
  • Footswitch control and main control panel with 3 wrapping modes
  • Rotation speed 5-150 RPM
  • 90 psi air required
  • 110v standard plug
  • Machine size 28" L x 41" W x 57" H (basic configuration)
  • 3-Year Warranty

Accessories

  • Gravity rollers conveyors.
  • Side vertical rollers "V" shape.
  • Short products bridge.
  • Top presser with manual fitting.
  • Wheels with brake.
  • Manual bubblewrap floor dispenser for reels up to 47"

Product to wrap sizes: Maximum/minimum length: no limit / (9.8"/250mm) or (6"150 mm) with short products bridge.

    Model Number OWM-SA-50
    Power 110v single phase
    Engine 0,4 Kw
    Manoeuvre 24V c.c.
    Power consumption 0,26 Kw
    Ring rotation speed from 5 to 150 rpm
    Speed inverter Omron
    PLC Omron
    Pneumatic pressure 90psi
    Compressed air consumption 0.75gal/cycle
    Width 4in
    Thickness 17, 20, 23 or 30 microns
    External / Internal Ø  (7.8"/200mm) / (1.5"/38 mm.)
