Quicklub QLS 401 Electric Grease Pump
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By

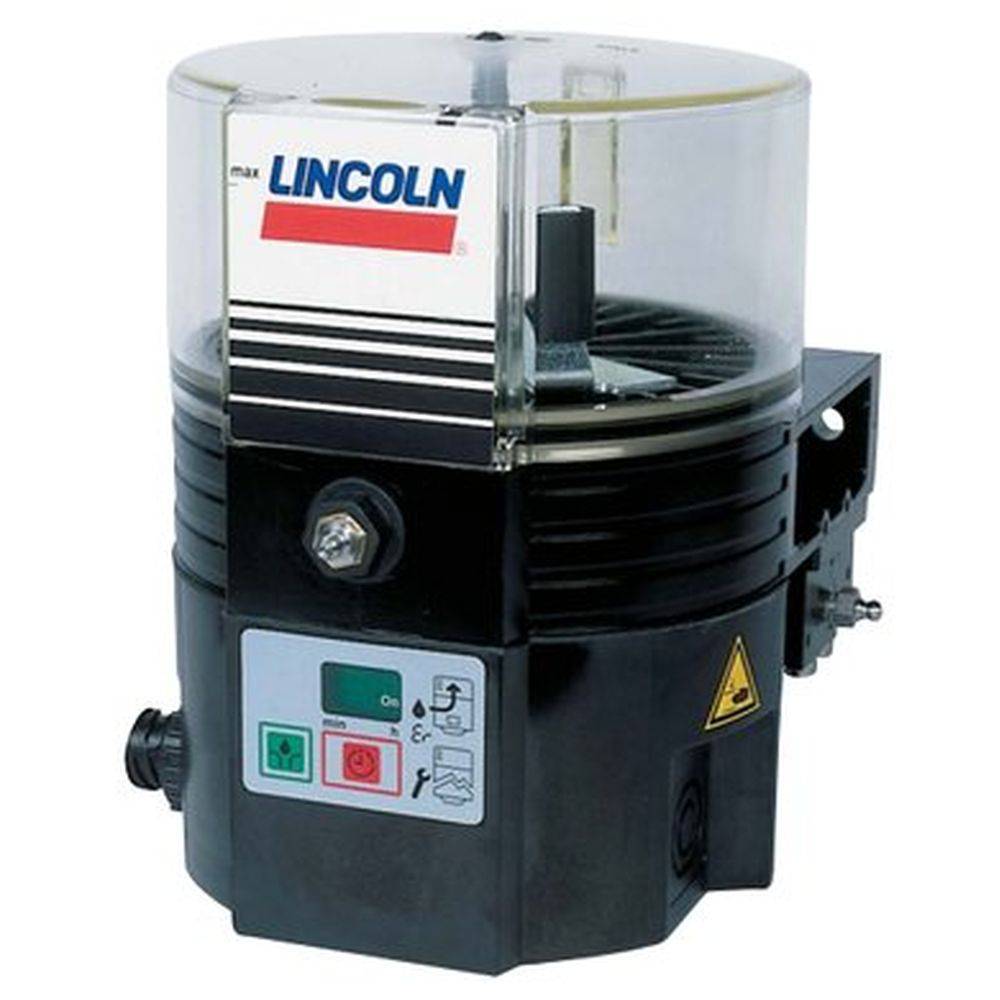

Lincoln Quicklub QLS 401 Electric Grease Pump
The QLS 401 features a newly enhanced stirring paddle in the reservoir to prevent grease separation - even with long fill intervals. All components including an internal pressure relief valve are part of the complete package. Standard features include a built-in controller with LED display and keypad for easy programming and monitoring, and a divider block with 6, 8, 12, or 18 outlets. The integrated, all-in-one system concept reduces installation time and costs. The 12 and 24 VDC models are available with bayonet, quarte-turn type plugs for improved protection in mobile applications (optional low-level control).
| Model No. | P40191202574 |
| Operating Voltage | -12 and 24 VDC -120 and 230 VAC - 50/60 HZ |
| Operating Current | - 12 VDC/2.0 A - 24 VDC/1.0 A - 120 VAC/1.0 A - 230 VAC/0.5 A |
| Operating Temperature | -13°F to 158°F/-25°C to 70°C |
| Number of Outlets | 6, 8, 12, or 18 |
| Reservoir Capacity | 61/1.0 L/2.0 L |
| Protection | NEMA 4 |
| Lubrication Cycle Time | - AC: 20 min to 60 hours - DC: 4 min. to 6 hours |
| Number of Cycles | For VDC: 1 to 5 cycles For VAC - SSV6/SSV8: 1 to 3 cycles For SSV12/SSV18: 1 cycle |
| Timer Memory | Indefinite |
| Maximum Operating Pressure | 3000 psi/205 bar |
| Output per Outlet & Cycle | approx. 0.012"/approx. 0.2 cm |
| Lubricant | NLGI 2 grease |
| Weight | 12.5 lbs./5.7 kg. |
