Product Overview

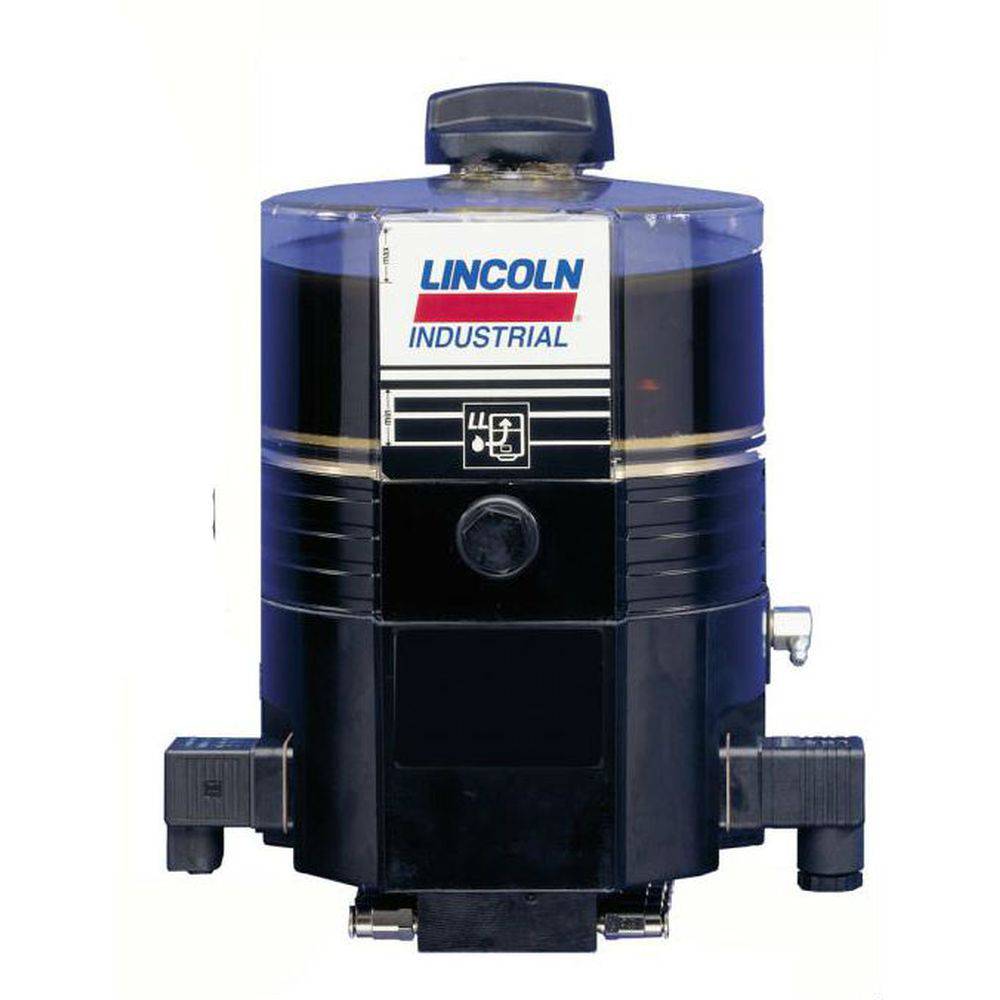

Lincoln Quicklub QLS 311 For Oil Back Valve Remote Control SSV12 Valve Type The QLS 301/311 for Remote Control allows customers to be in control of the lubrication process. The 24 VCD models monitor system cycling with a proximity switch. An external timer or PLC controls the interval between lube cycles. The 120 VAC models have no cycle monitoring and are on/off controlled by the user's external timer or PLC.
Key source specifications include Output per Outlet & Cycle: approx. 0.012"/approx. 0.2 cm.; Reservoir Capacity: 61"/1.0 L; Model P31161411110; Operating Voltage: - 24 VDC - 120 VAC - 50/60 Hz.
Key Features
- Output per Outlet & Cycle: approx. 0.012"/approx. 0.2 cm
- Reservoir Capacity: 61"/1.0 L
- Operating Voltage: - 24 VDC - 120 VAC - 50/60 Hz
- Operating Current: - 24 VDC/ 1.0 A - 120 VAC / 1.0 A
- Operating Temperature: - -10°F to 158°F/-25°C to 70°C
- Protection Rating: NEMA 4
Ideal For
Choose this product if you need:
- oil QLS 311
- Lubrication systems using up to NLGI 2 grease or oil with at least 40cSt
- Systems operating within the listed pressure specifications
- Electrical systems using the listed - 24 VDC - 120 VAC - 50/60 Hz supply
Not Ideal For
Not ideal for electrical systems that do not use - 24 VDC - 120 VAC - 50/60 Hz, pressures above the listed -Grease: 3000 psi/205 bar - Oil: 1160 psi/80 bar maximum, or lubricants outside the listed up to NLGI 2 grease or oil with at least 40cSt. compatibility.
Product Details
Review the product details below to confirm the output per outlet & cycle, reservoir capacity, model / mpn, operating voltage, operating current match your equipment or lubrication system.
Shared Product Details
| Brand | Lincoln Industrial |
| Model / MPN | P31161411110 |
| Operating Voltage | - 24 VDC - 120 VAC - 50/60 Hz |
| Operating Current | - 24 VDC/ 1.0 A - 120 VAC / 1.0 A |
| Operating Temperature | - -10°F to 158°F/-25°C to 70°C |
| Reservoir Capacity | 61"/1.0 L |
| Protection Rating | NEMA 4 |
| Minimum Pause Time | 4 min. DC models/20 min. AC models |
| Maximum Operating Time | 25 min. DC models/15 min. AC models |
| Timer Memory | Indefinite |
| Maximum Operating Pressure | -Grease: 3000 psi/205 bar - Oil: 1160 psi/80 bar |
| Output per Outlet & Cycle | approx. 0.012"/approx. 0.2 cm. |
| Lubricant | up to NLGI 2 grease or oil with at least 40cSt. |
| Weight | 12.5 lbs./5.7 kg. |
| Number of Outlets | 6, 8, 12, or 18 |
Compatibility
The QLS 301/311 for Remote Control allows customers to be in control of the lubrication process. The 24 VCD models monitor system cycling with a proximity switch. An external timer or PLC controls the interval between lube cycles. The 120 VAC models have no cycle monitoring and are on/off controlled by the user's external timer or PLC. The minimum pause time requirements should be followed when setting up the external controller.
- Compact pre-assembled pump and metering valve work with customer's PLCs, no need for separate controller.
- Works between -10°F and 158°F allowing operation in many environments
Frequently Asked Questions
What model number should I verify?
Confirm model or manufacturer part number P31161411110.
What voltage does it use?
The listed operating voltage is - 24 VDC - 120 VAC - 50/60 Hz.
What pressure is listed?
The supplied specifications list -Grease: 3000 psi/205 bar - Oil: 1160 psi/80 bar.
