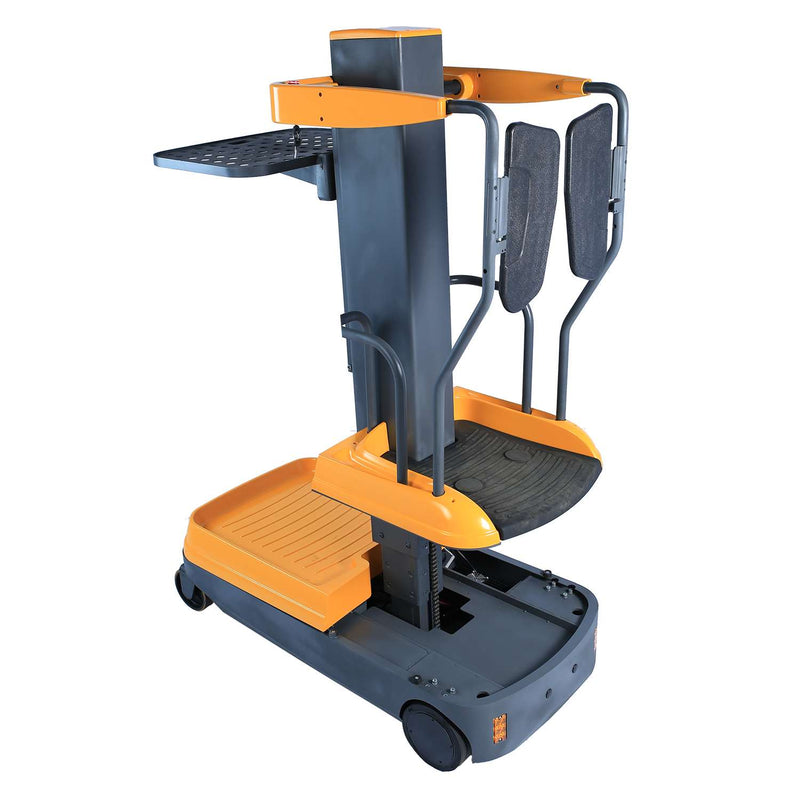

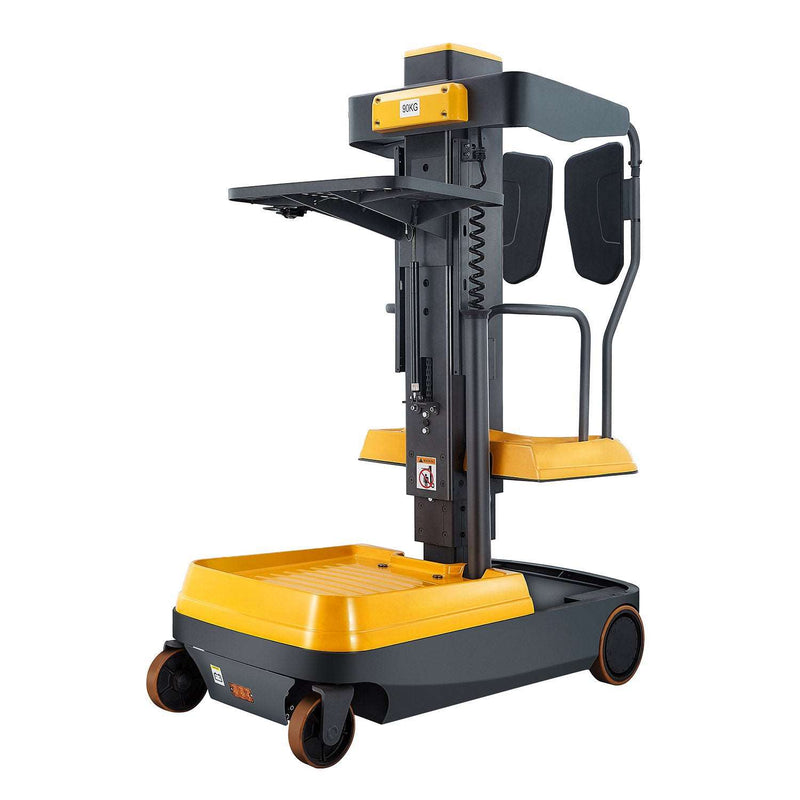

Fully Electric Mini Order Picker with Load Tray, 200 lbs Capacity
The Fully Electric Mini Order Picker with Load Tray is a high-powered solution designed for handling high lift tasks in facilities and outlets. Equipped with a 500-watt drive motor and a 2,200-watt lift motor, this order picker ensures efficient and safe operation. The safety guard mechanism cuts off power if the gate is open when lifting to a height of 20", ensuring the operator's safety.
Dual foot pedals and hand sensors further enhance safety by ensuring the operator has both feet properly positioned on the platform and both hands on the controls for normal travel and lift functions. The humanistic design includes a flashing light for added visibility and safety.

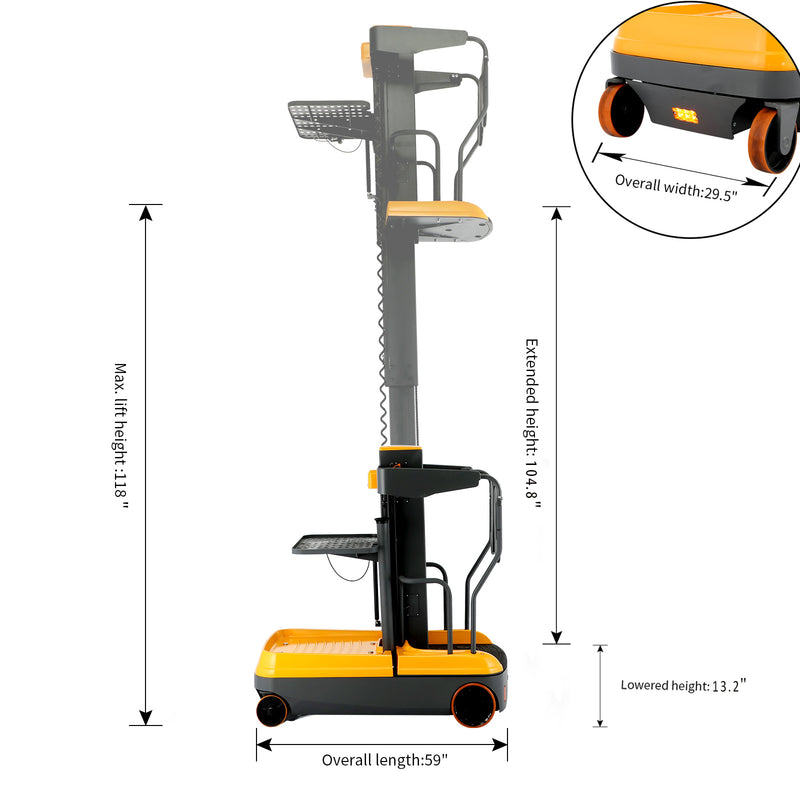

Dimensions
- Overall Length: 59"
- Overall Width: 29.5"
- Recommended Aisle Width: 68.9"
- Turning Radius: 51.2"

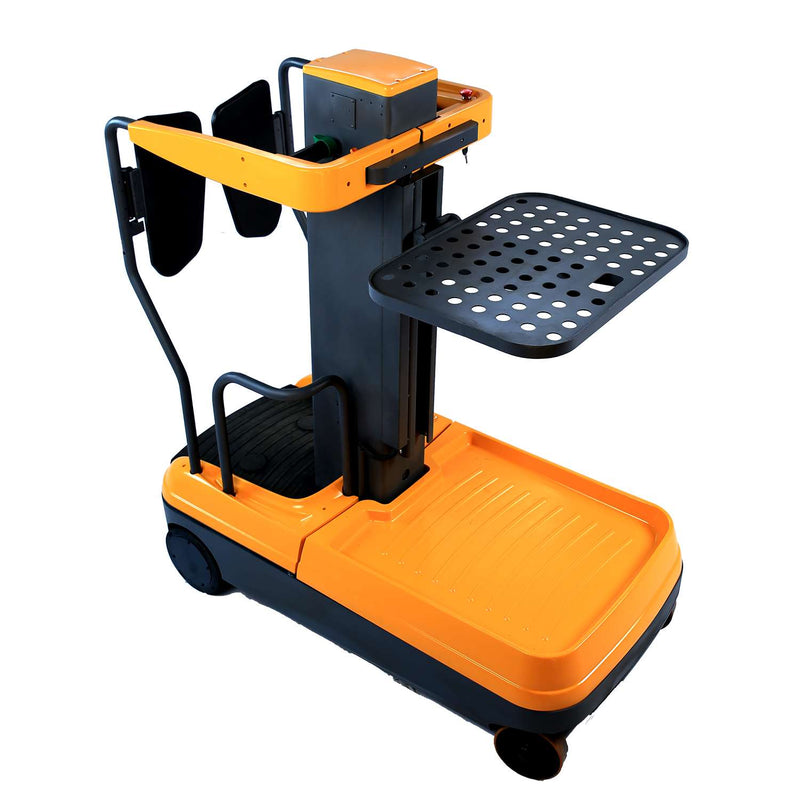

Loading Tray
- Adjustable Height: 10.2"
- Size: 27.5" x 19.7"
Features

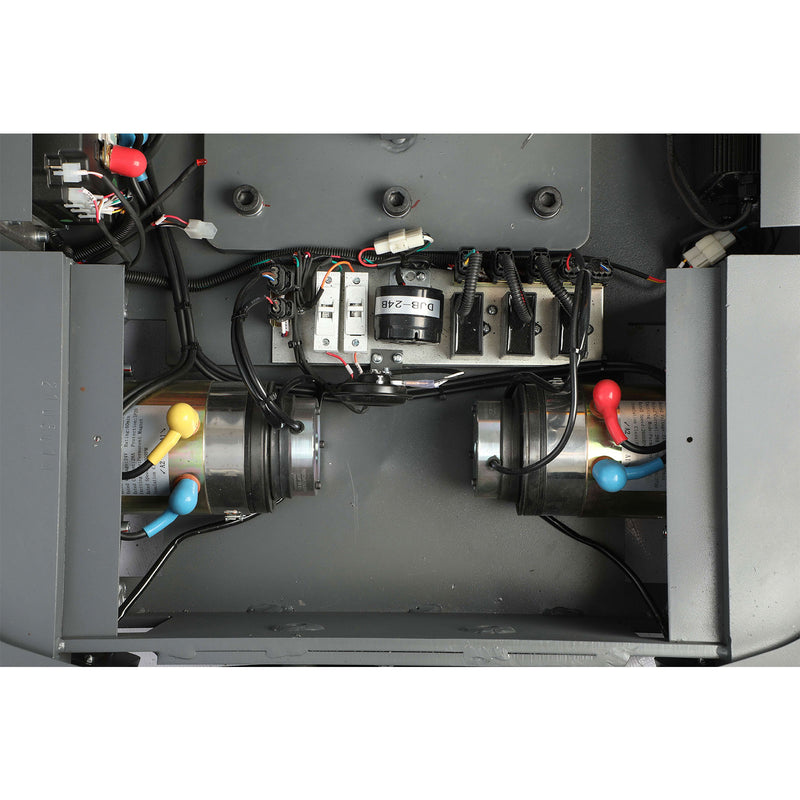

- 500-watt drive motor, 2,200-watt lift motor
- Safety guard to cut off power if the gate is open when lifting to 20" height
- Dual foot pedals for operator safety

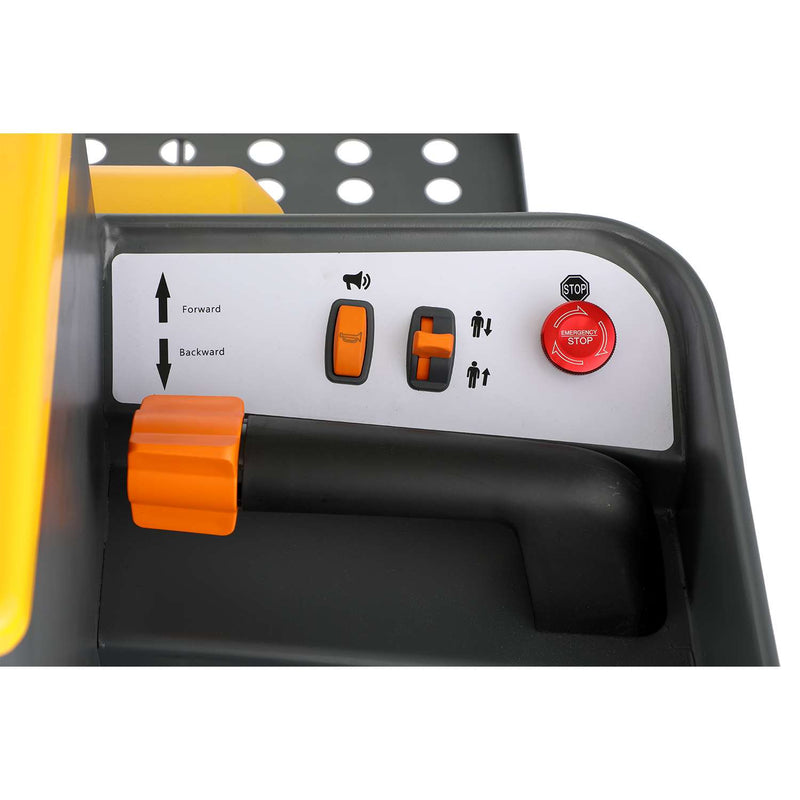

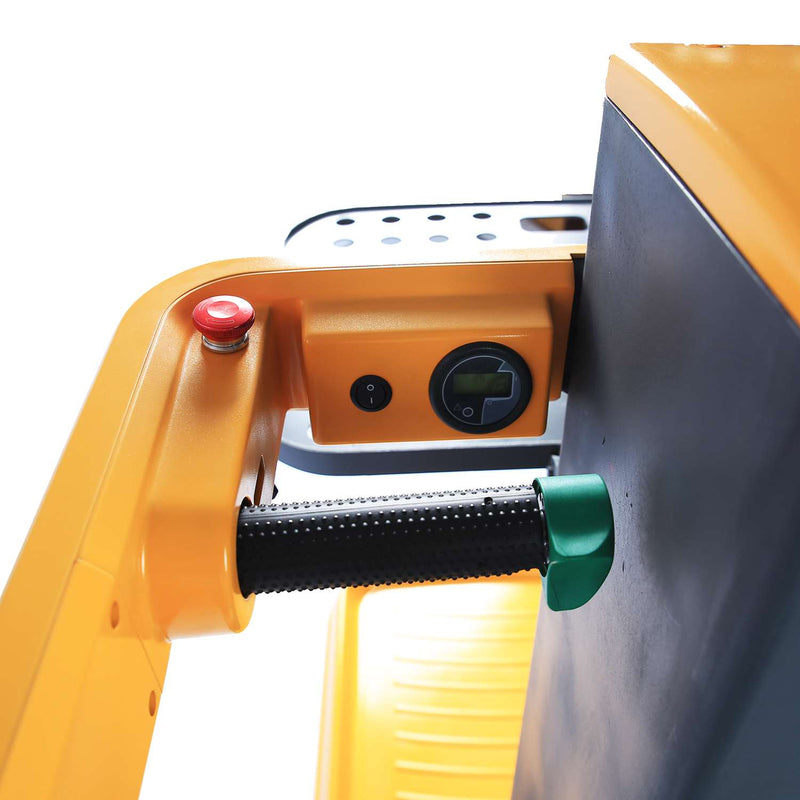

- Hand sensors ensure both hands are on controls for normal operation
- Flashing light for added visibility

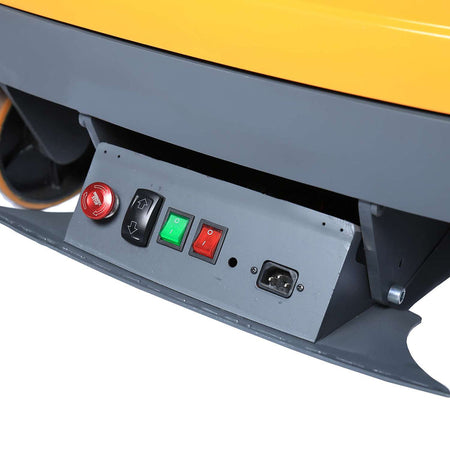

- 105 Ah rechargeable batteries with built-in charger

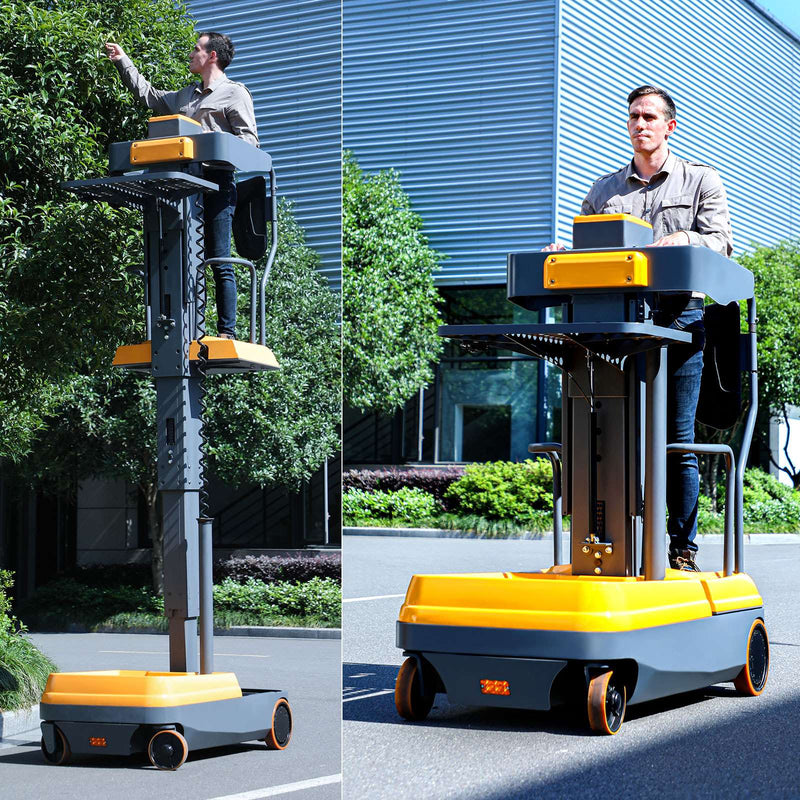

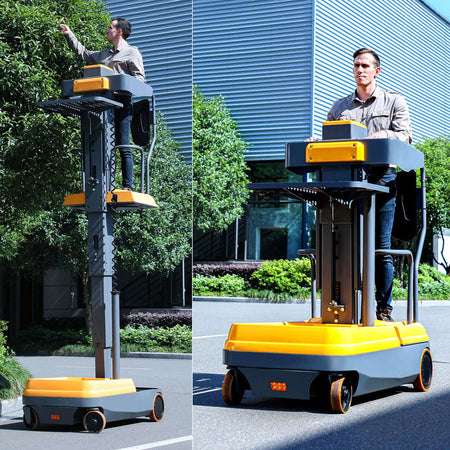

- Ideal for stock picking, inspection, maintenance, and installation tasks
- Smart solution for light maintenance applications or picking tasks without a pallet
Speed Chart
| Lifting Height | Travel Speed |
|---|---|
| Mast collapsed | 2.8 mile/h |
| 19-39" | 1.4 mile/h |
| 39-118" | 0.75 mile/h |
Specifications
- SKU No.: A-5001
- Load Tray Capacity: 200 lbs
- Load Deck Capacity: 330 lbs

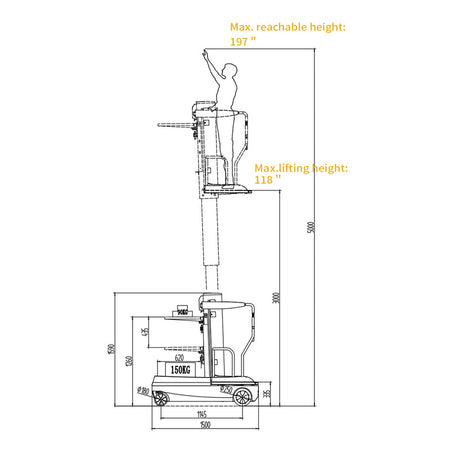

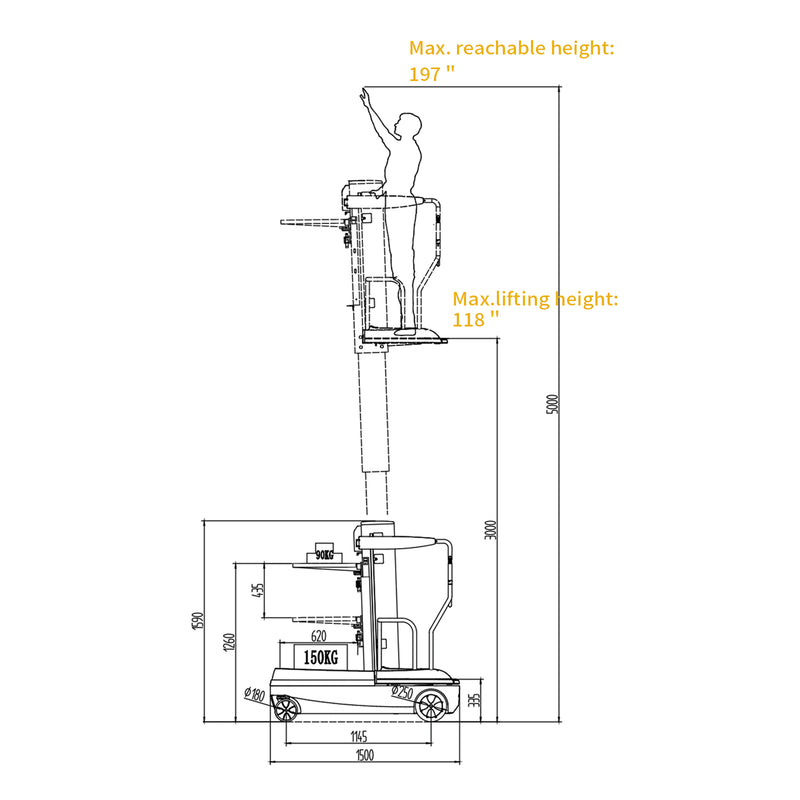

- Platform Lifting Height: 118"
- Max. Reachable Height: 197"
- Wheel Diameter: 9.8"/7"
- Weight: 1650 lbs
- Not explosion proof
- Designed for use on flat ground, avoiding uneven grounds with potholes or large ramps
- Normal ambient temperature range: -13°F to +104°F
- Fully charge the battery before use to avoid damaging cells
- The charger plugs into standard 110V-120V outlets
- Charge the truck once a month even if not in use
