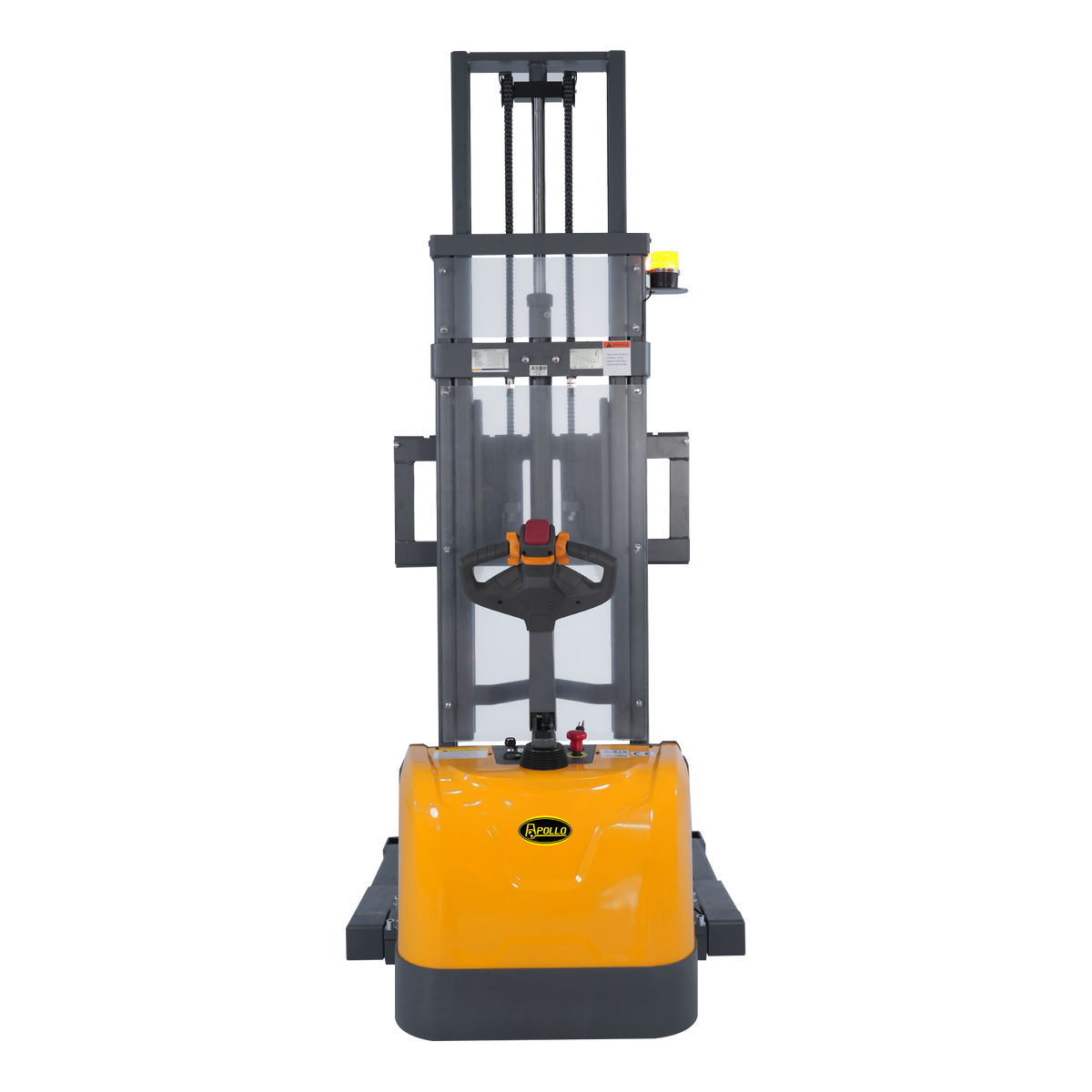

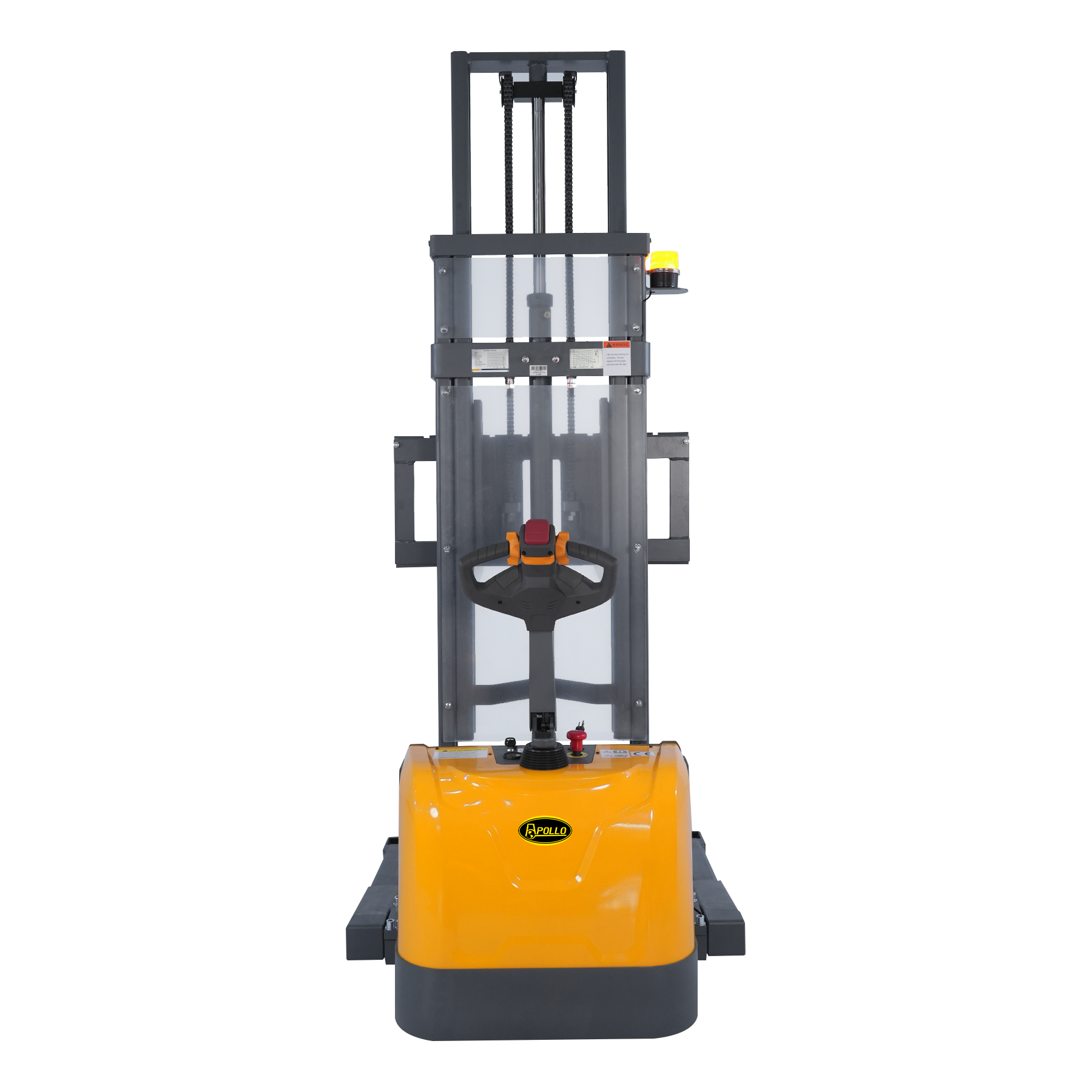

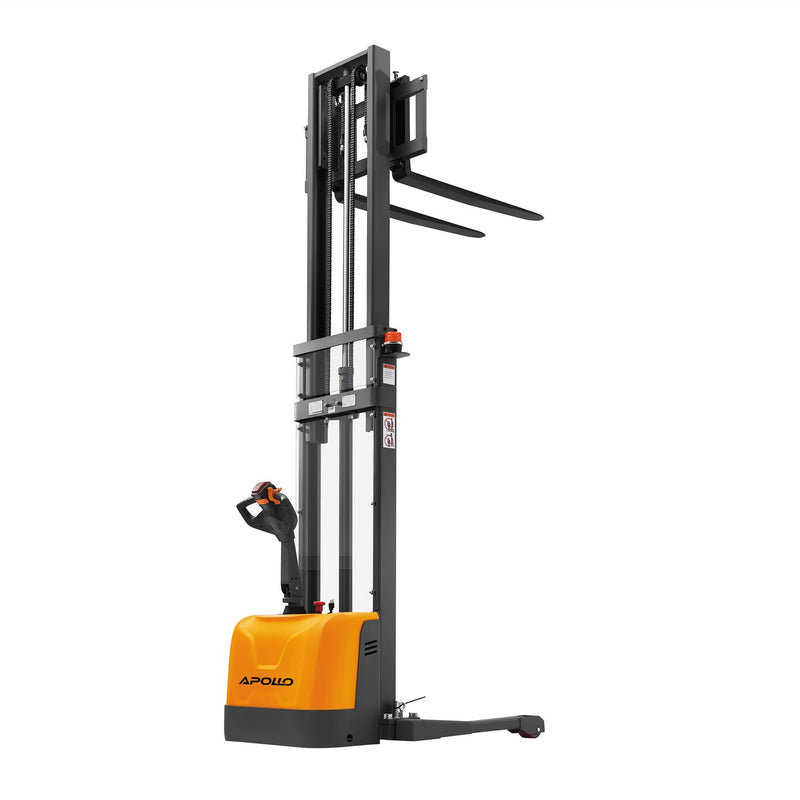

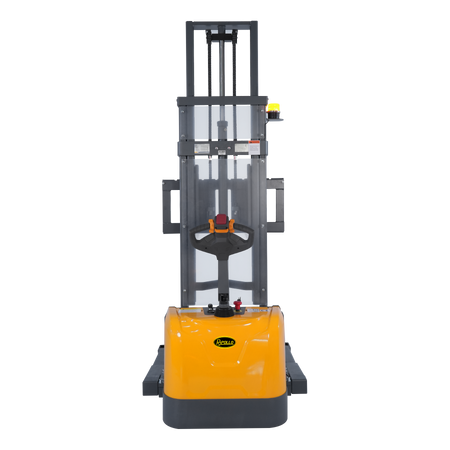

Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs with 130in Lifting

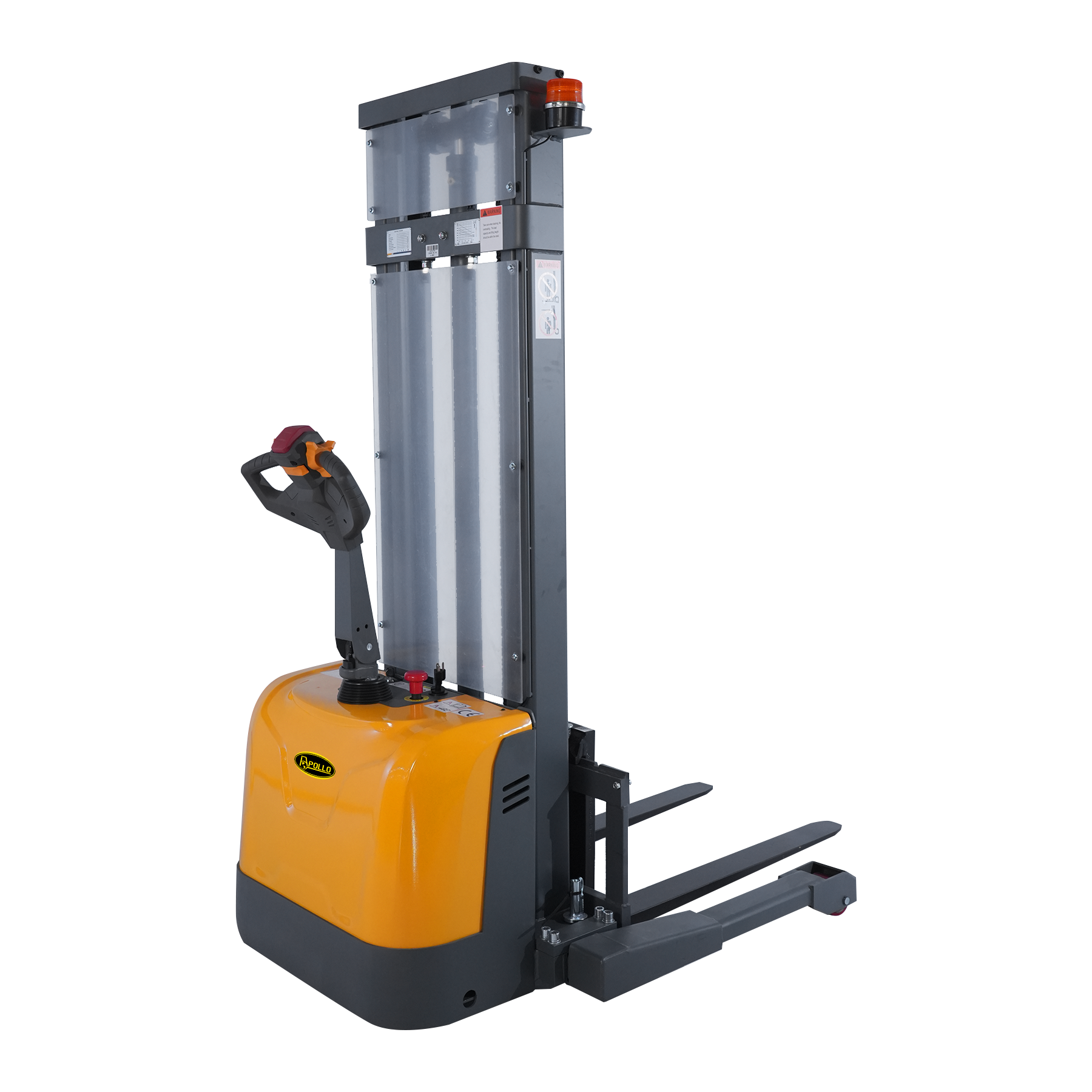

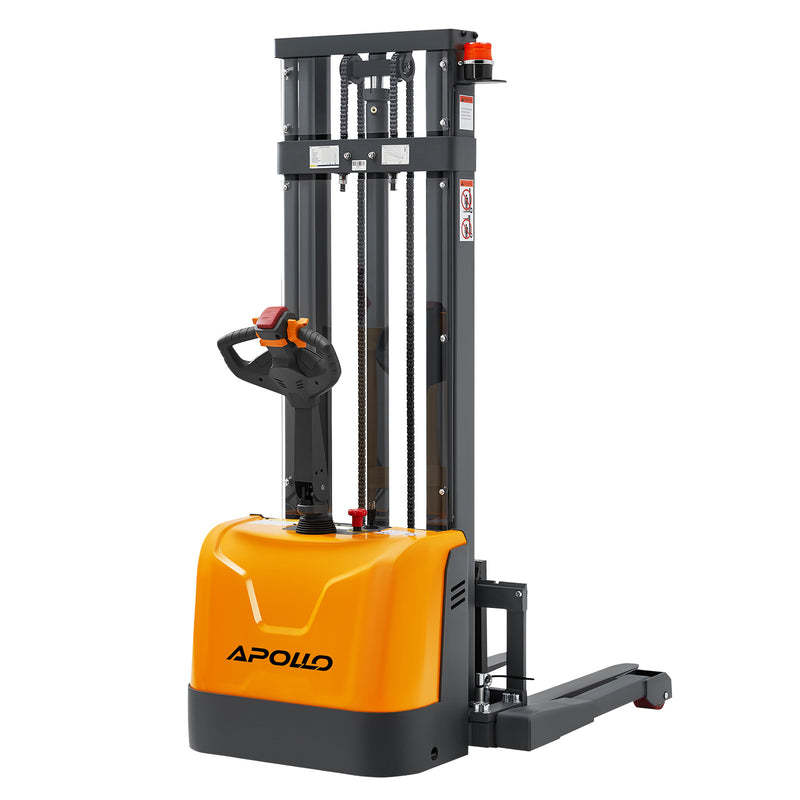

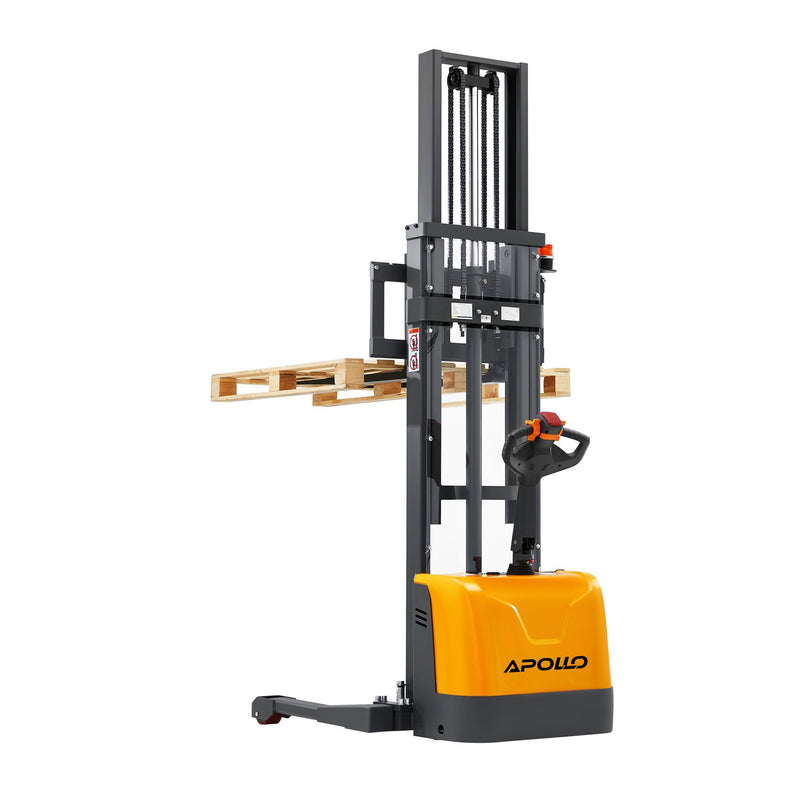

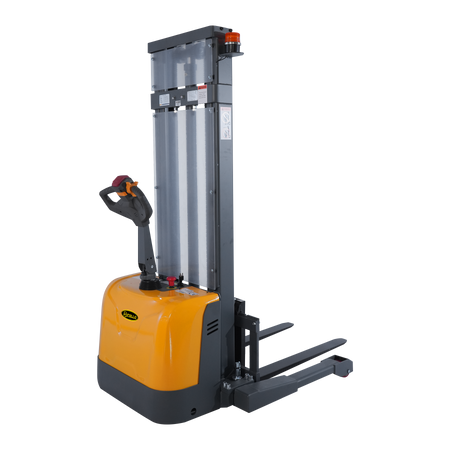

The APOLLOLIFT A-3049 is a full electric straddle stacker designed to lift heavier loads to higher racks, making it ideal for modern warehouses and tight indoor environments. With a lifting capacity of 3300 lbs and a max lift height of 130", this unit is powered by a durable 24V/100AH GEL battery and built to handle daily industrial demands.
Important Notice: For optimal battery performance and longevity, charge at least once a month when not in use.
| Feature | Specification |
|---|---|
| Capacity | 3300 lbs |

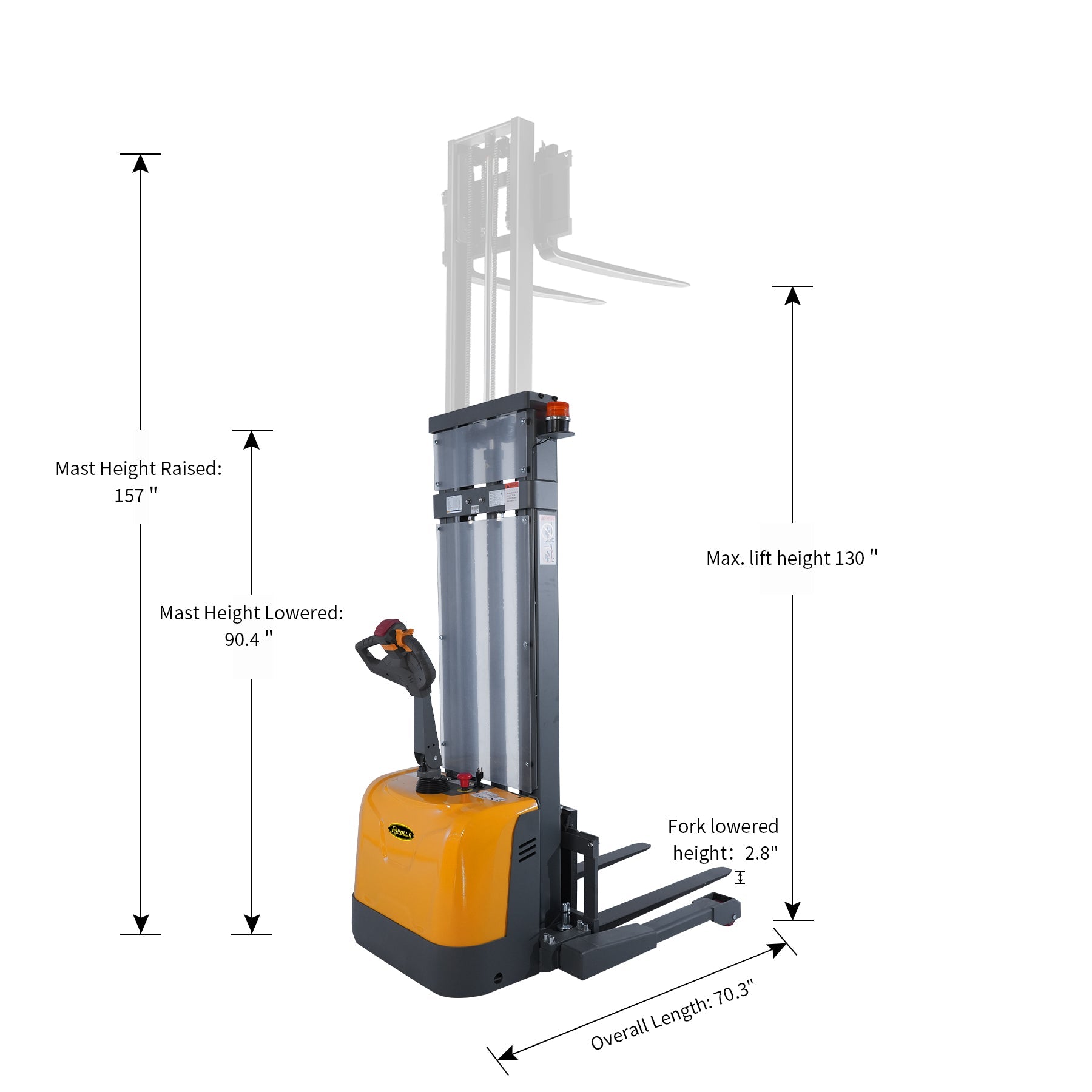

| Max Lifting Height | 130" |
| Mast Lowered Height | 90.4" |
| Mast Extended Height | 157.3" |

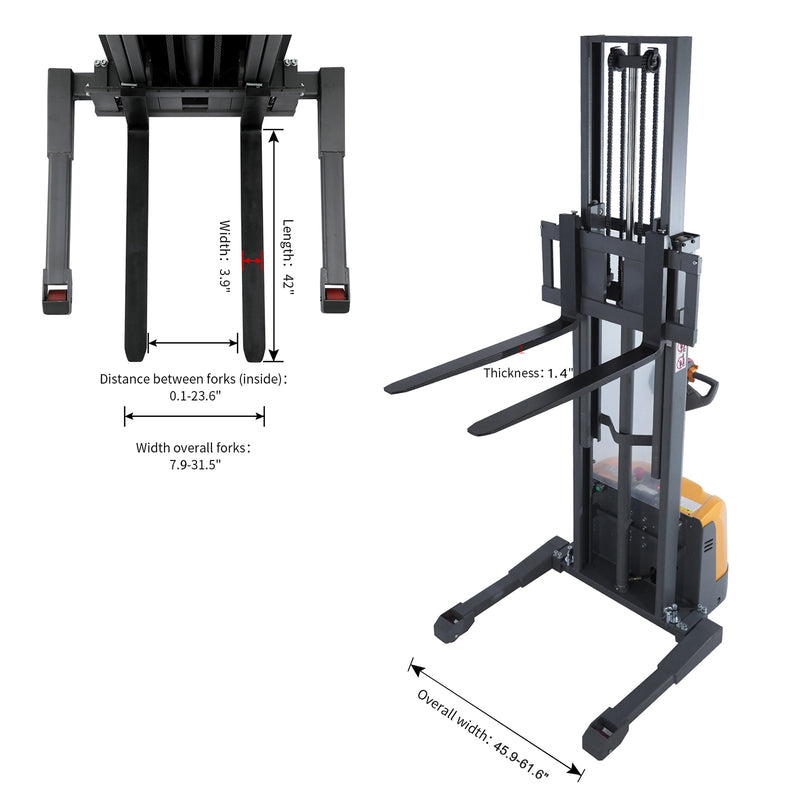

| Fork Length | 42" |
| Fork Overall Width | 7.9 – 31.5" |
| Single Fork Width | 3.9" |
| Fork Thickness | 1.4" |
| Fork Lowered Height | 2.8" |
| Inside Distance Between Forks | 0.1 – 23.6" |
| Load Center Distance | 23.6" |
| Aisle Width | 87.8" |
| Turning Radius | 53.0" |
| Overall Length | 68.9" |
| Driving Speed (Unladen) | 3.1 mph |
| Driving Speed (Laden) | 2.8 mph |
| Lifting Speed (Empty) | 5.9 in/s |
| Lifting Speed (Loaded) | 3.5 in/s |
| Lowering Speed (Empty) | 4.3 in/s |
| Lowering Speed (Loaded) | 5.9 in/s |

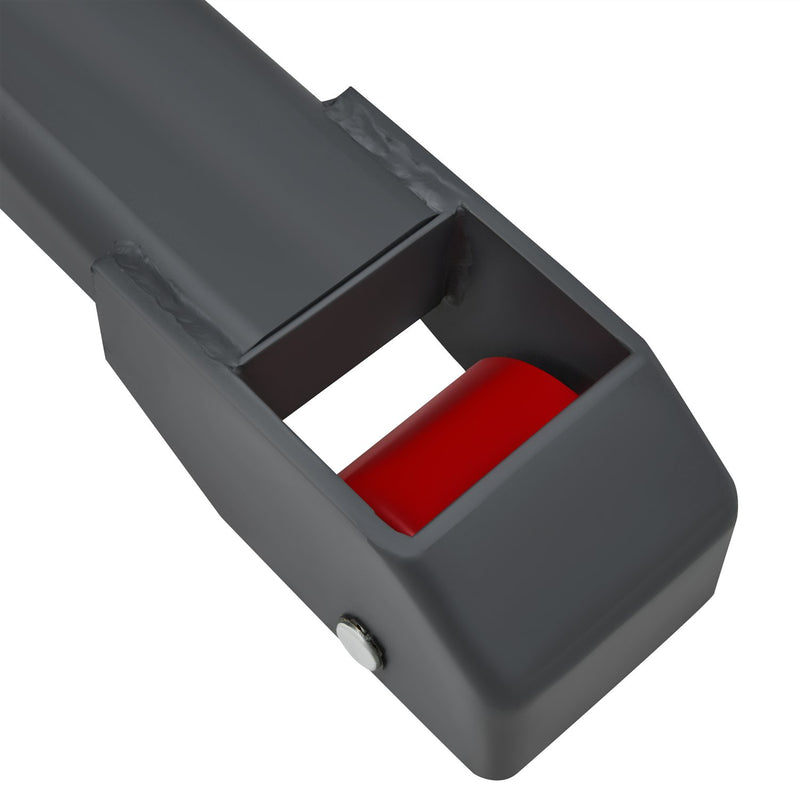

| Support Leg Type | Straddle |
| Battery Type | GEL |
| Battery Spec | 24V / 100AH |
| Charger | 24V / 10A built-in |
| Charging Time | 8–10 hours |
| Working Time | 6–8 hours |
| Service Weight | 1450 lbs |
| Gross Weight | 1490 lbs |
| Package Size | 44" x 34" x 93" |
