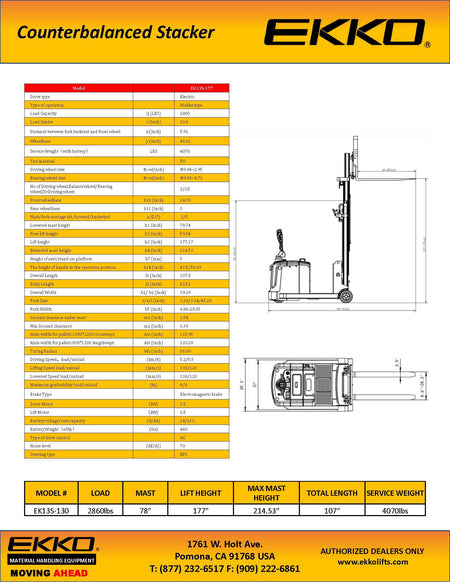

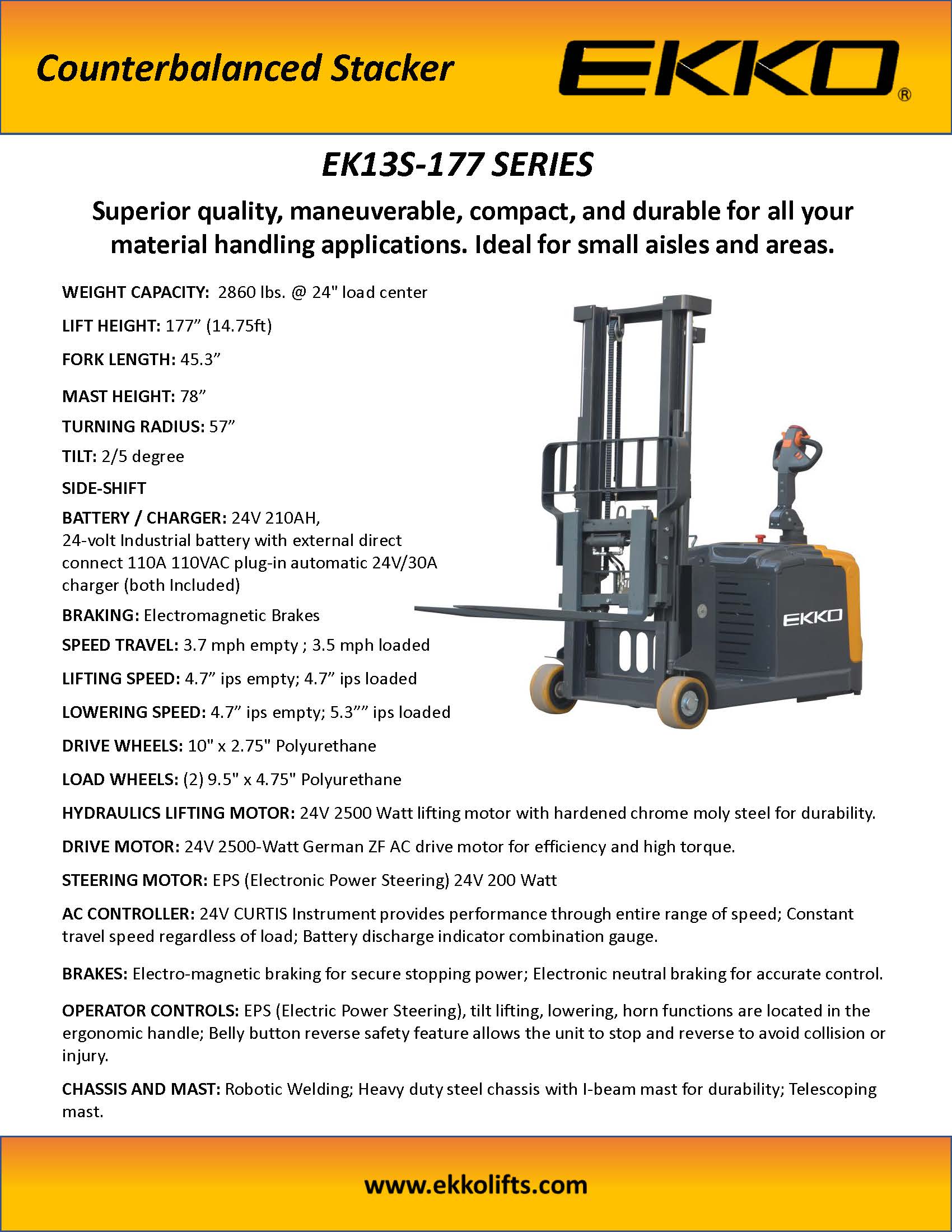

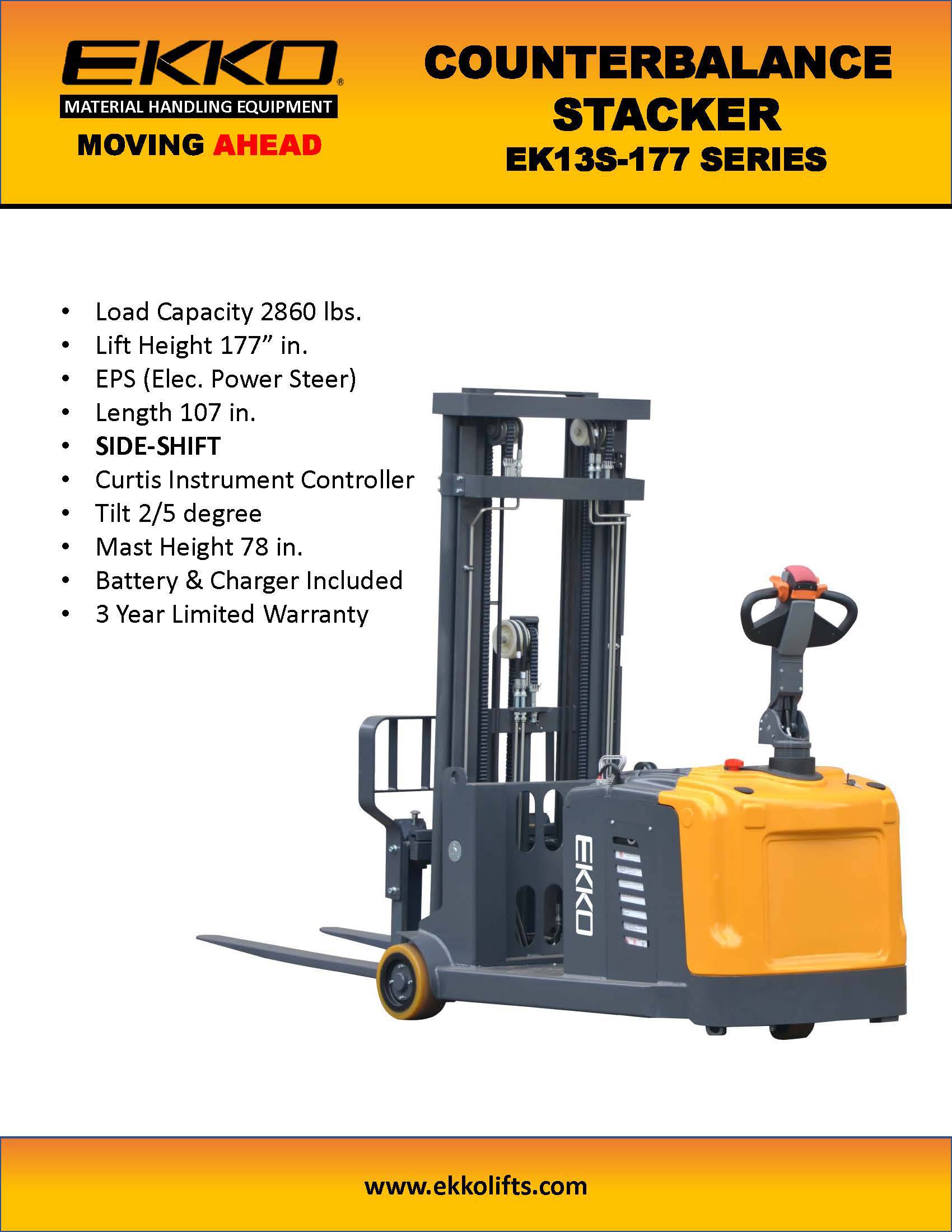

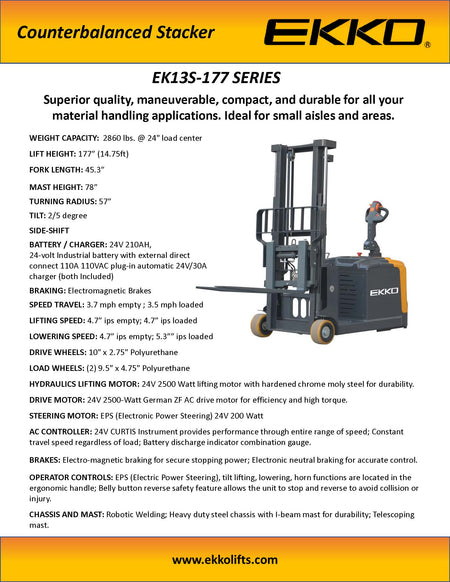

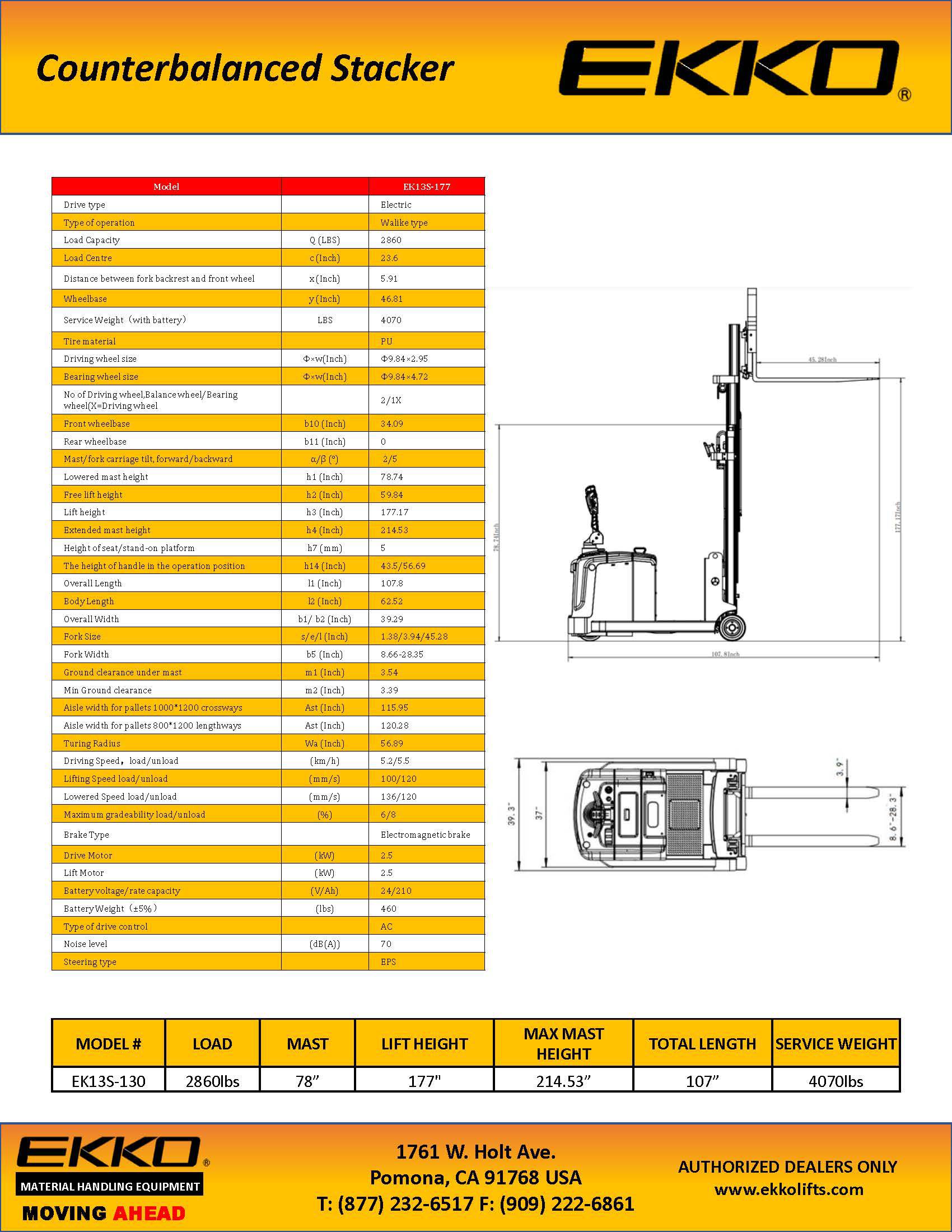

Product Brochure
EKKO EK13S-177 Walkie Stacker with Side Shift - 2860lb
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
Product Overview
EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING The EKKO EK13S-177 Fully Powered Counterbalanced Walkie Stacker, featuring side-shifting functionality, is a versatile and powerful material handling solution that combines the best features of a forklift and a walkie stacker. Ideal for loading and unloading trucks, working in loading docks, stock rooms, manufacturing floors, and warehouses, this stacker is designed to handle loads up to 2860 lb and can reach a height of 177 inches (14.75ft).
Key Features
- 3300 lb load capacity
- Lift Speed: 4 / 5.1 in/s
- Lift Motor: 24V 2500 Watt
- Fork Width: 8.66" - 28.35"
- Charger: 24V/30A
- Turning Radius: 57"
Ideal For
Choose this product if you need:
- Loading and unloading trucks
- Loading docks
- Stock rooms
- Manufacturing floors
- Warehouses
Not Ideal For
Consider a different product if you need a different capacity, lift height, fork/leg configuration, or power source than shown above.
Product Details
| Model Number | EK13S-177 |
| Load Capacity | 3300 lb |
| Fork Width | 8.66" - 28.35" |
| Turning Radius | 57" |
| Battery / Charger | 24V/30A |
| Motor | AC 24V 2500-Watt |
| Dimensions | 39.29"W x 107.8"L x 78.74"H |
Frequently Asked Questions
What is this stacker used for?
This stacker is used for loading and unloading trucks; loading docks; stock rooms; manufacturing floors. Always compare your application with the product details shown above.
What should I check before ordering?
Check the load capacity, fork width, battery / charger, dimensions, and any available configuration options to make sure this item matches your equipment and facility needs.
