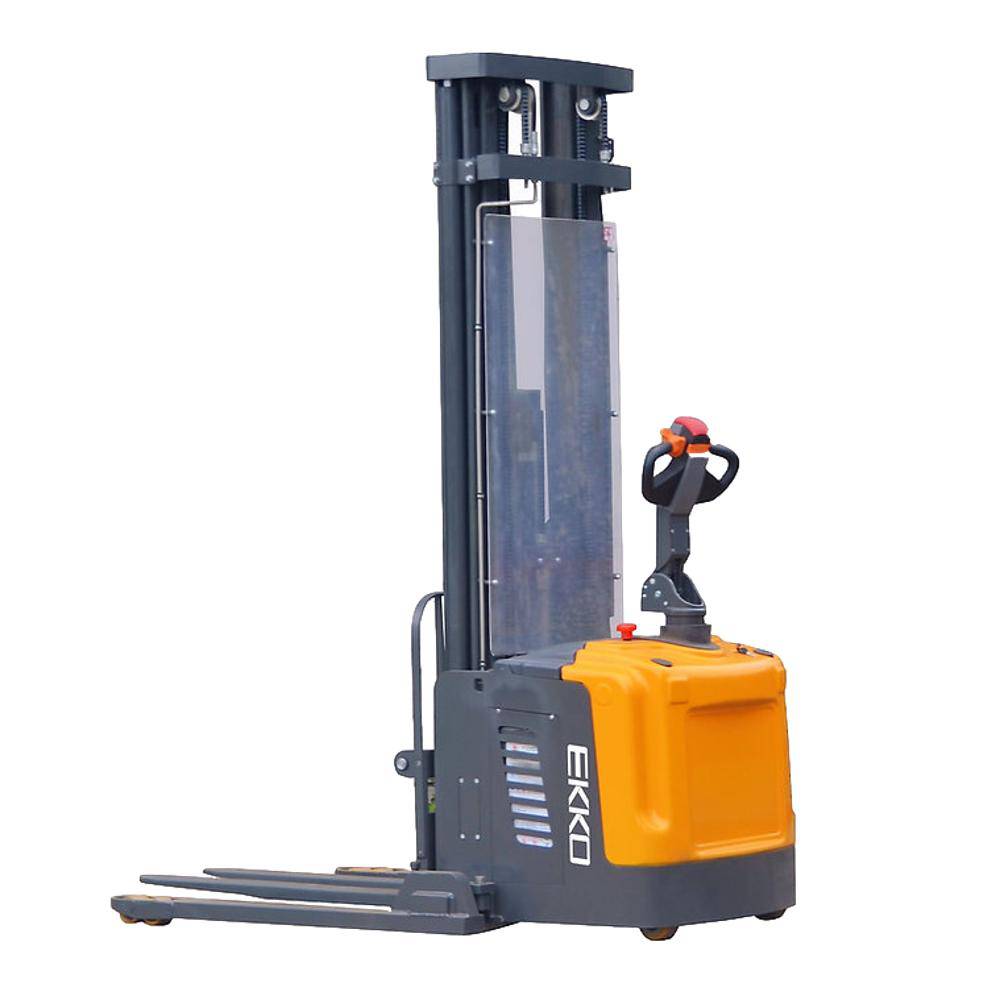

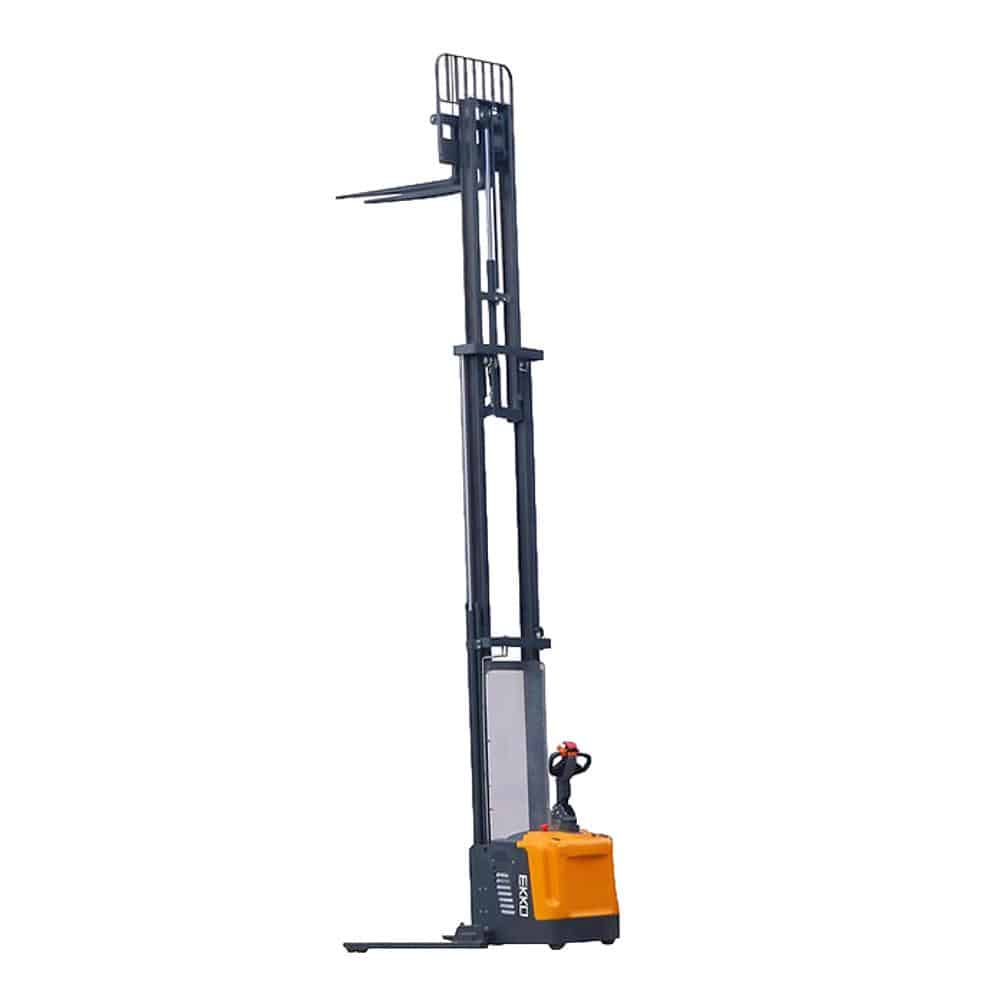

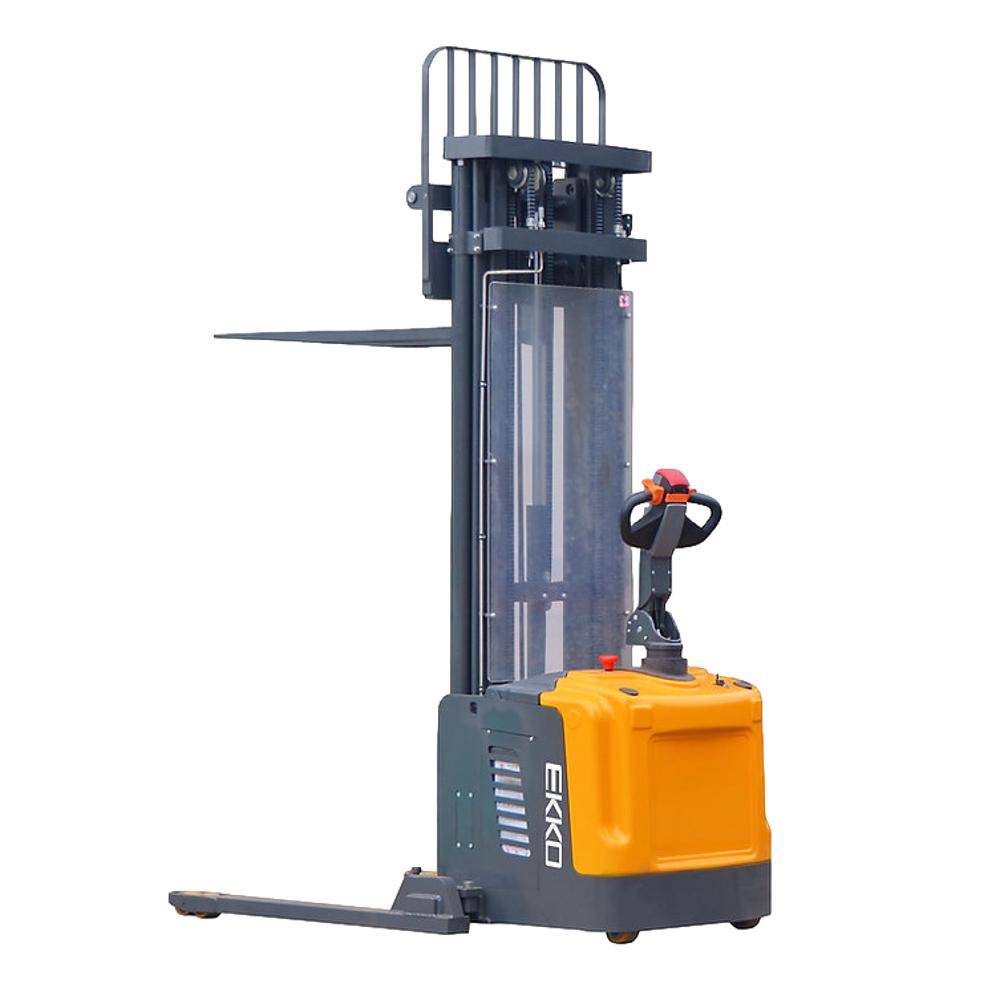

EKKO EB16EA Full Powered Straddle Stacker 4400 lbs Capacity 216" Height
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
EKKO EB16EA Full Powered Straddle Stacker
Elevate your material handling capabilities with the EKKO EB16EA Full Powered Straddle Stacker, an advanced electric stacker that seamlessly blends the functionality of a forklift, reach truck, and walkie stacker. This powerhouse is designed to optimize operations in loading docks, stock rooms, manufacturing floors, and warehouses, making it a versatile addition to any material-handling fleet.
Outstanding Features and Specifications:
-
Superior Load Capacity: With an impressive load capacity of 4400 lbs, the EB16EA can handle heavy-duty tasks with ease, improving efficiency and productivity in your operations.
-
Exceptional Lift Height: Achieve new heights in material handling with a maximum raised height of 216 inches, allowing you to maximize space in storage and operation areas.
-
Innovative SIDE-SHIFTING Functionality: Equipped with SIDE-SHIFTING capability, it offers precise control and flexibility, making it easier to maneuver and position loads accurately.
-
Customizable Fork and Leg Configuration: Adjustable forks (9.8-31.5 inches) and legs (38.06-51.8 inches) ensure the stacker can be adapted to various pallet sizes and applications, enhancing its utility across different tasks.
-
Robust Construction: Crafted from high-quality steel and equipped with durable drives, the EB16EA is built to withstand challenging terrain, impacts, and usage, ensuring reliability and long service life.
-
Advanced Control System: The Curtis Instrument Controller paired with a 24V Center AC Drive Motor and a 24V Lift Motor delivers smooth and responsive operation, enhancing user experience and operational efficiency.
-
Cutting-Edge Power: Powered by a 24V/210Ah battery, it offers extended run times and consistent power, ensuring your operations keep moving without frequent stops for recharging.
-
Ease of Maneuverability: Featuring EPS (Electric Power Steering), it provides effortless steering that reduces operator fatigue and improves handling precision.
Additional Highlights:
- Fork Length: 45.28 inches for versatile load management.
- Free Lift: 76.25 inches, allowing for operation in tight spaces with low ceilings.
- Triple Mast Design: Offers stability and extended reach for high stacking.
- Polyurethane Wheels: Ensure smooth movement and durability.
- Ergonomic Handle and Controls: Designed for comfort and ease of use during long shifts.
- Steel Construction and Robotic Welding: For unmatched durability and strength.
- 3-Year Limited Warranty: For peace of mind and confidence in your investment.
Dimensions and Weight:
- Extended Mast Height: 253.15 inches for maximum reach.
- Lowered Mast Height: 98.03 inches, ideal for passing through low entrances.
- Service Weight: 3542 lbs, highlighting its robust build and capability.
The EKKO EB16EA Full Powered Straddle Stacker stands out as a high-performance, efficient, and reliable solution for modern material handling challenges. Whether you're optimizing warehouse space, improving loading operations, or seeking a versatile stacking solution, the EB16EA delivers on all fronts, promising to be a valuable asset in achieving operational excellence.
|
Model |
|
EB16EA |
|
Load Capacity |
(lb) |
4400 |
|
The max. lifting height |
(in) |
216 |
|
Load center distance |
(in) |
24 |
|
Free Lift |
(in) |
76.25 |
|
EPS (Elec. Power Steer) |
|
Yes |
|
Fork length |
(in) |
45.28 |
|
Single fork width |
(in) |
4.7 |
|
Overall fork width |
(in) |
9.8-31.5 |
|
Lowered fork height |
(in) |
1.58 |
|
Fixed leg length |
(in) |
42 |
|
Adjustable legs |
(in) |
38.06-51.81 |
|
Turning radius |
(in) |
69.09 |
|
Overall length |
(in) |
81.69 |
|
Max width |
(in) |
46.93-60.71 |
|
Extended mast height |
(in) |
253.15 |
|
Lowered mast height |
(in) |
98.03 |
|
Battery voltage |
(V/Ah) |
24/210Ah |
|
Charger |
(V/A) |
24V/30A |
|
Lifting Motor |
(W) |
3000 Watt, Lift speed, laden/unladen:95/160m/s Lowering speed, laden/unladen:130/110mm/s |
|
AC Driving Motor |
(W) |
3000 Watt, Driving speed: laden/unladen: 5.2/5.5km/h |
|
Service Weight |
(lb) |
3542 |
