Product Overview

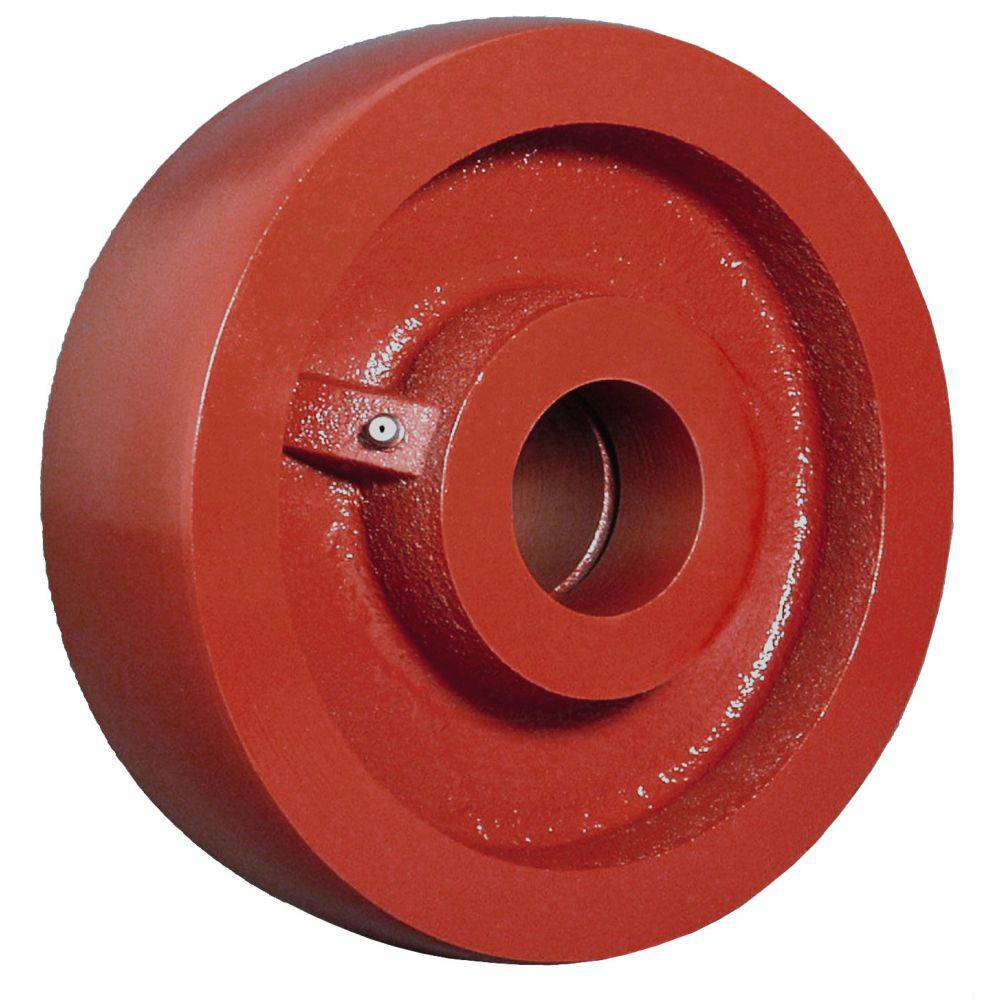

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel. The energy saver ductile steel wheel has a slightly crowned tread making it easier to swivel and position the casters during use.
Tread: Slightly crowned solid cast ductile steel
Key Features
- Wheel Diameter: 8".
- Tread Width: 3".
- Bearing Type: Multiple Bearing Options.
- Load Capacity: 4,000 Lbs..
- Load Capacity: 4,000 Lbs..
Ideal For
Choose this product if you need:
- Replacing a worn caster wheel with the same diameter, tread width, and bore or bearing type
- Carts or equipment that match the wheel specifications shown below
Not Ideal For
Consider a different wheel if you need a different diameter, tread width, bore or bearing type, capacity, or wheel material than the specifications shown.
Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 4,000 Lbs. |
| Wheel Diameter | 8" |
| Tread Width | 3" |
| Tread Type | Slightly crowned solid cast ductile steel |
| Core Type | Solid Cast Ductile Steel |
| Axle / Bore Diameter | -1-15/16" -1" -1-1/4" -1/2" |
| Hub Length | 3-1/4" |
| Bearing Type | Multiple Bearing Options |
| Color | Red |
| Tensile Strength | 45,000 PSI |
| Temperature Range | -45° F to 800° F |
| Available Options | 1-15/16" ID Plain Bore, 1/2" ID Tapered Roller Bearing, 1-1/4" ID Roller Bearing, 1" ID Roller Bearing |
| Available Models | CD80KR85, CD80KR70, CD80KR25, CD80KR23 |
Frequently Asked Questions
What is this wheel used for?
Use this wheel for replacing a worn caster wheel with the same diameter, tread width, and bore or bearing type. It may also fit carts or equipment that match the wheel specifications shown below. Always compare the application with the product details shown above.
What should I check before ordering?
Confirm the wheel diameter, tread width, bore or bearing type, material, and capacity shown in the Product Details table.
