Product Overview

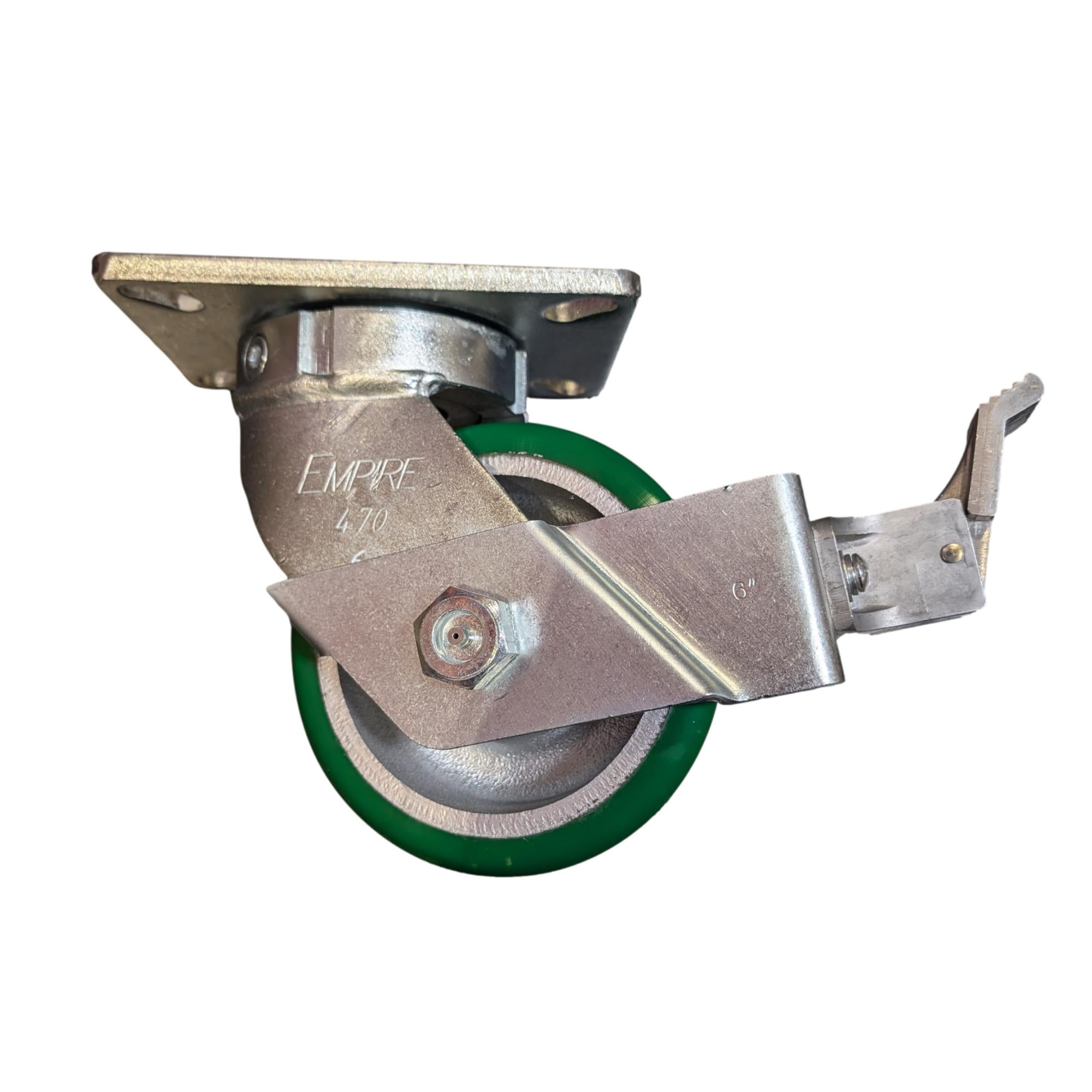

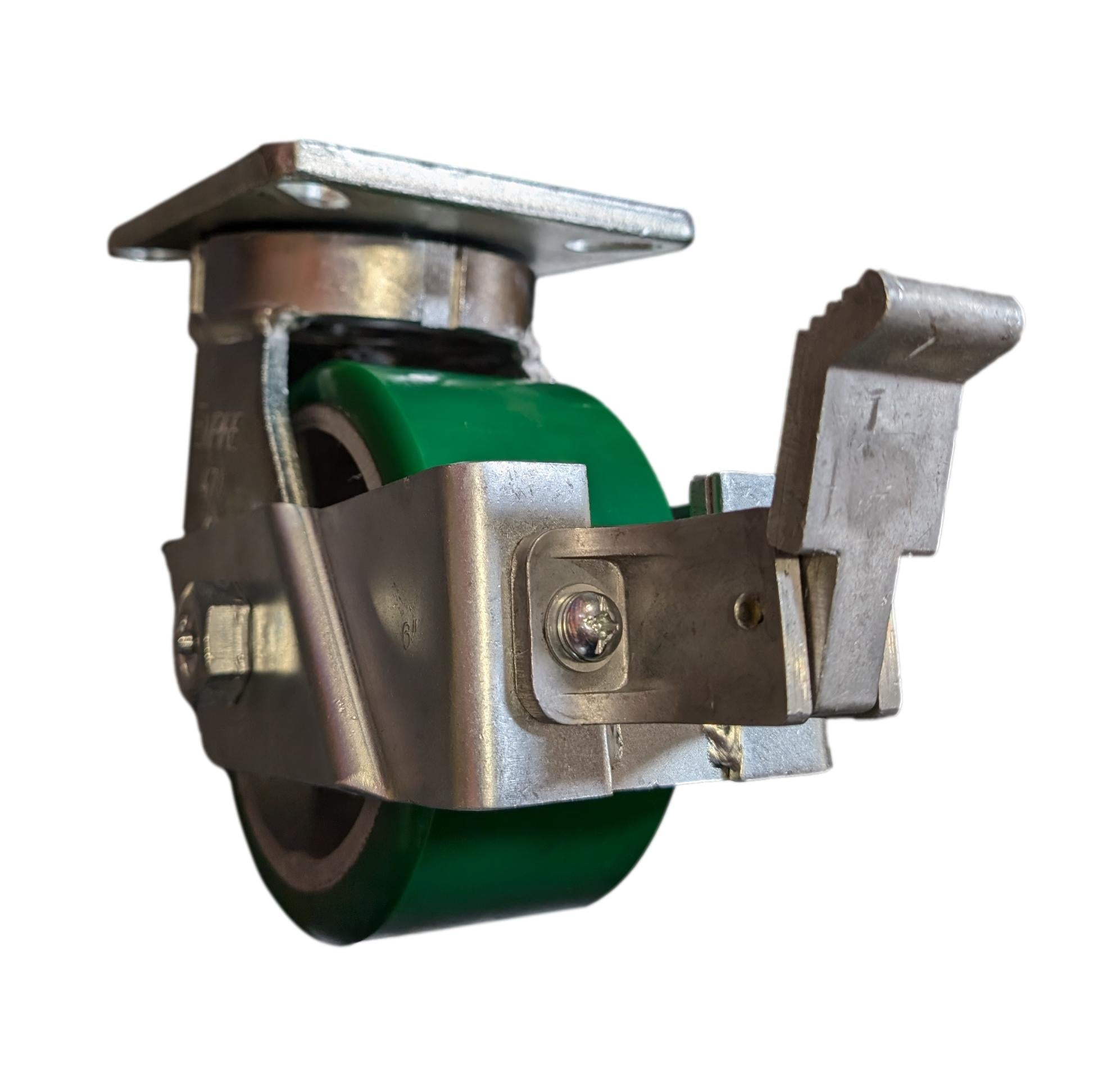

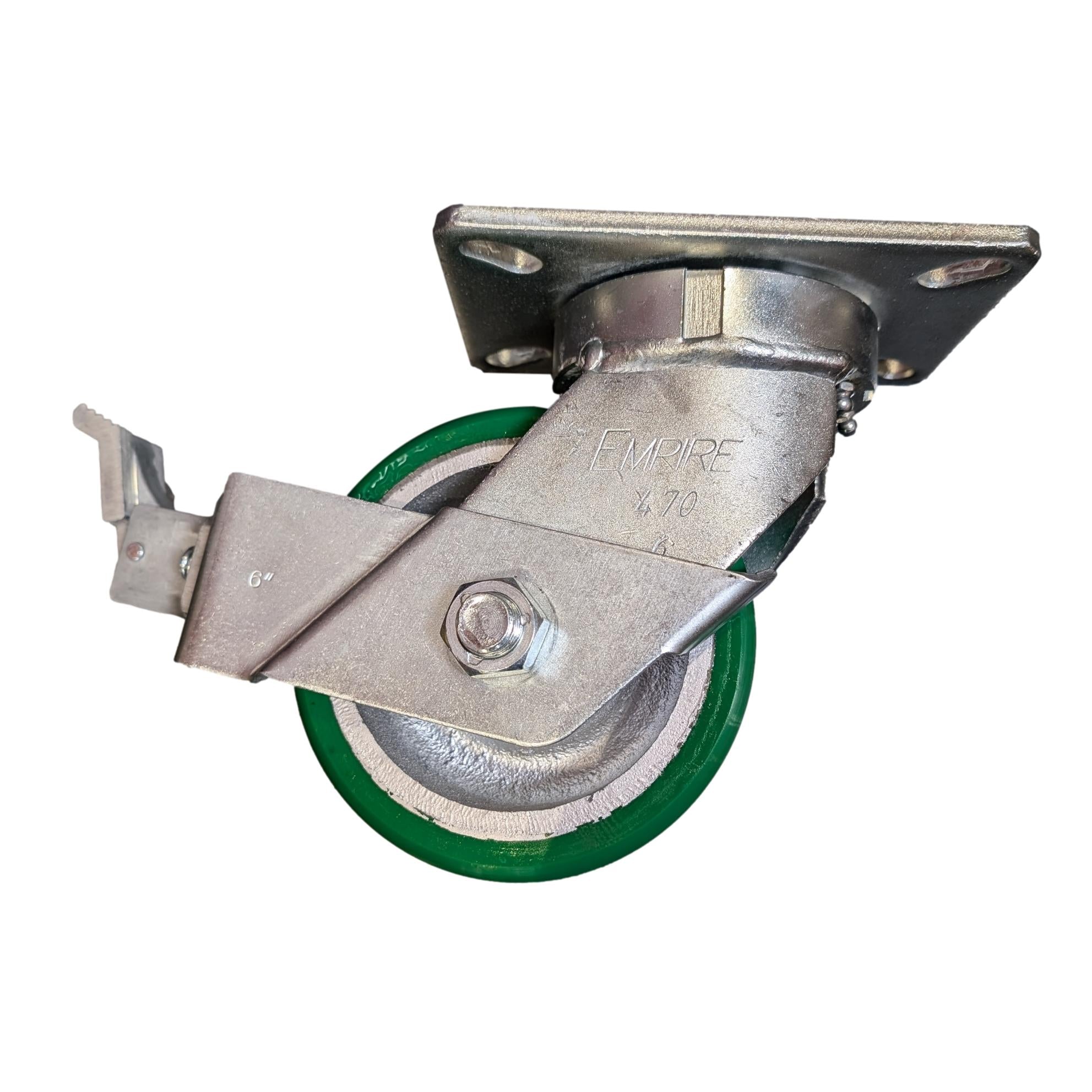

This 470 Series swivel caster combines a 6-inch-diameter, 3-inch-wide polyurethane wheel with a face contact brake and a listed 2,000 lb load capacity. The polyurethane tread is paired with a cast iron core, roller bearing, flat tread, and green wheel finish for demanding industrial caster applications.
The swivel assembly provides a 5.2188-inch swivel radius, while the face contact brake helps hold the wheel when the equipment needs to remain stationary. Before ordering, compare the fastening size, bolt-hole pattern, overall height, load capacity, and operating temperature range with the equipment being fitted.
Key Features
- 2,000 lb listed load capacity
- 6-inch polyurethane wheel
- 3-inch flat tread
- Face contact wheel brake
- Roller bearing construction
- -40 F to 180 F range
Ideal For
Choose this product if you need:
- Heavy industrial equipment requiring a high-capacity swivel caster
- Applications needing polyurethane tread and a cast iron core
- Equipment requiring a face contact brake
- Mounting layouts matching the listed fastening dimensions
Not Ideal For
Not ideal for loads above 2,000 lbs, temperatures outside the listed range, or equipment with incompatible mounting dimensions.
Product Details
Review the product details below to confirm the load capacity, wheel size, tread construction, mounting dimensions, brake type, overall height, and temperature range match your equipment.
Shared Product Details
| Model / MPN | C000.4BF |
| Series | 470 Series |
| Load Capacity | 2,000 lbs |
| Wheel Diameter | 6" |
| Tread Width | 3" |
| Tread Type | Polyurethane |
| Core Type | Cast iron core |
| Bearing Type | Roller bearing |
| Wheel Color | Green |
| Overall Height | 8" |
| Swivel Radius | 5.2188" |
| Fastening Size | 7-1/4" x 5-1/4" |
| Bolt-Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Brake Type | Face contact brake |
| Durometer | Shore A 95 |
| Temperature Range | -40 F to 180 F |
Frequently Asked Questions
What brake does this caster use?
It uses a face contact brake that acts on the wheel to help hold the equipment in place.
What mounting measurements should I check?
Confirm the listed 7-1/4" x 5-1/4" fastening size and 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern against your equipment.
What temperature range is listed?
The original product data lists an operating range from -40 F to 180 F.
