Product Overview

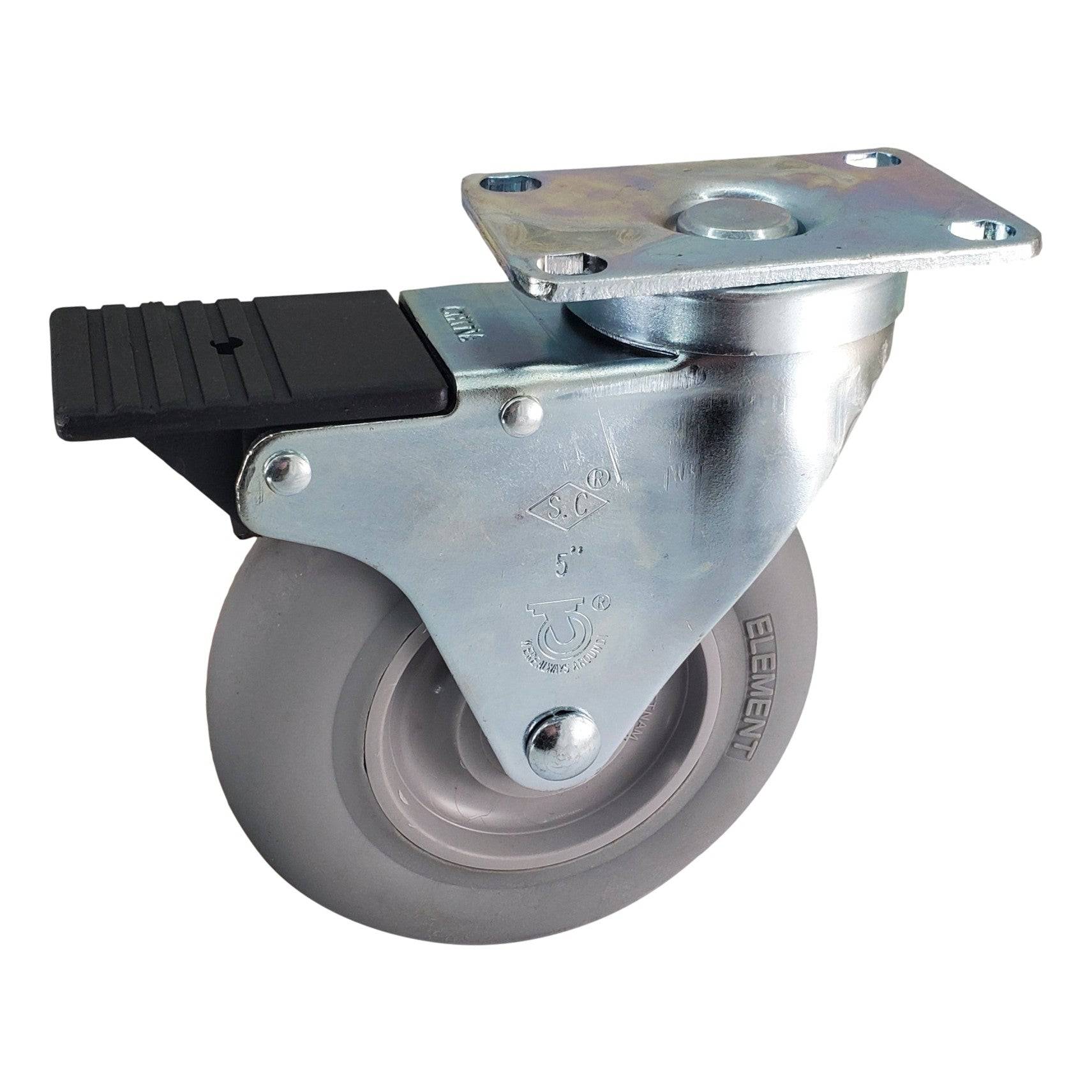

The Element wheel is quiet rolling providing a cushioned ride, and is impact-resistant, making it a great wheel for carts that carry sensitive cargo. With a rounded tread, this wheel works well on both carpet and hard floors, and the high-performance thermo-elastomer tread works great over bumps and thresholds. When used with a delrin bearing, this wheel is water-resistant and can be used in wash-down applications.
Tread: Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core
Key Features
- Load Capacity: 250 Lbs.
- Wheel Diameter: 5"
- Tread Width: 1-1/4"
- Tread: Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core
- Bearing: Annular Ball Bearing
- Lock Or Brake: Total Lock Brake
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Loads within the listed 250 Lbs rating
- Equipment using the listed 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Applications needing the listed Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 250 Lbs, the equipment requires a wheel other than 5" diameter by 1-1/4" tread width, the mounting does not match the listed 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern, or a different brake or lock style is required instead of Total Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, bolt-hole pattern, and overall height match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Wheel Color | Gray |
| Load Capacity | 250 Lbs. |
| Overall Height | 6-1/8" |
| Bearing Type | Annular Ball Bearing |
| Lock Type | Total Lock Brake |
| Model / MPN | T3EL50GI4306YY |
| Tread Type | Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core |
| Core Type | Polyolefin |
| Swivel Radius | 3-7/8" |
| Mounting Plate | 2-5/8" x 3-3/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Durometer | Shore A 65 (+/-5) |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Total Lock Brake.
