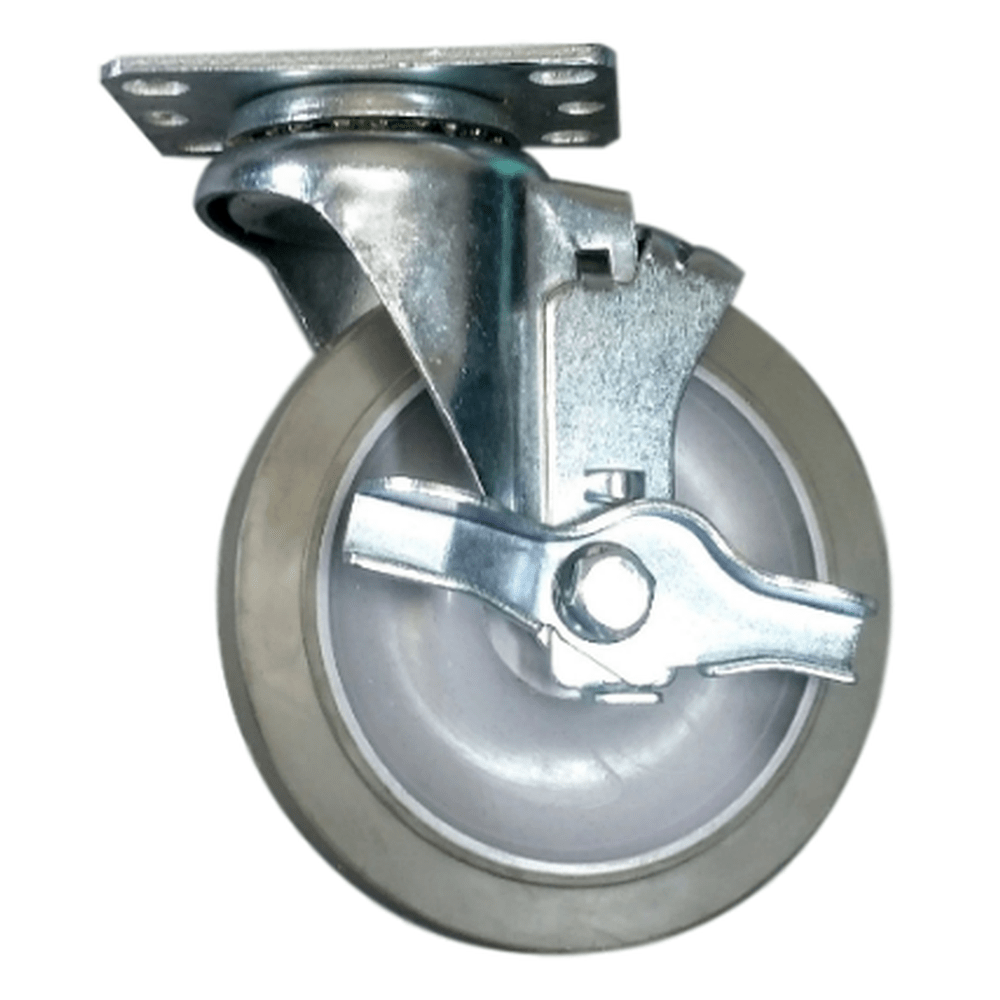

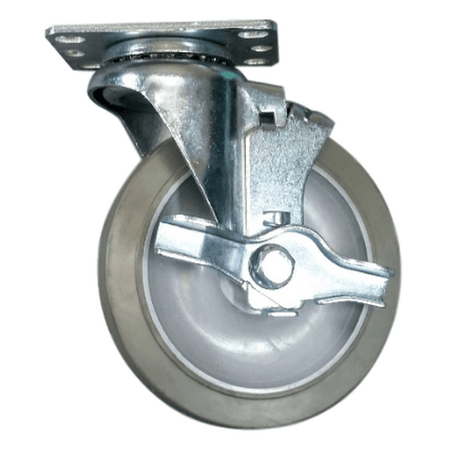

5" x 1-1/4" Nomadic Wheel Swivel Caster W/ Top Lock Brake - 325 lbs. capacity
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
5" x 1-1/4" Nomadic Wheel Swivel Caster with Top Lock Brake
The Nomadic wheel is quiet rolling, provides a cushioned ride, and is impact-resistant, making it a great wheel for carts that carry sensitive cargo. With a flat tread, this wheel works well on hard floors, and the high-performance thermo-elastomer tread works great over bumps and thresholds.
Tread: High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To
Core
Core: Polyolefin
Bearing: Ball Bearing
Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate
- Capacity: 325 Lbs.
- Color: Gray
- Durometer: Shore A 65 (+/-5)
- Temperature Range: -20° F to 180° F
| Load Capacity | 325 Lbs. |
| Wheel Diameter |
5" |
| Tread Width |
1-1/4" |
| Tread Type |
High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core |
| Core Type |
Polyolefin Core |
| Bearing Type | Ball Bearing |
| Wheel Color |
Gray |
| Overall Height |
6" |
| Swivel Radius |
4" |
| Plate Size |
2-3/8" x 3-5/8" |
| Bolt Hole Pattern |
1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Lock Type | Top Lock Brake |
| Durometer | Shore A 65 (+/-5) |
| Temperature Range | -20° F to 180° F |
