4" x 1-1/4" Semi-Steel Wheel Swivel Caster w/ Top Lock Brake - 300 lbs. Capacity
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By

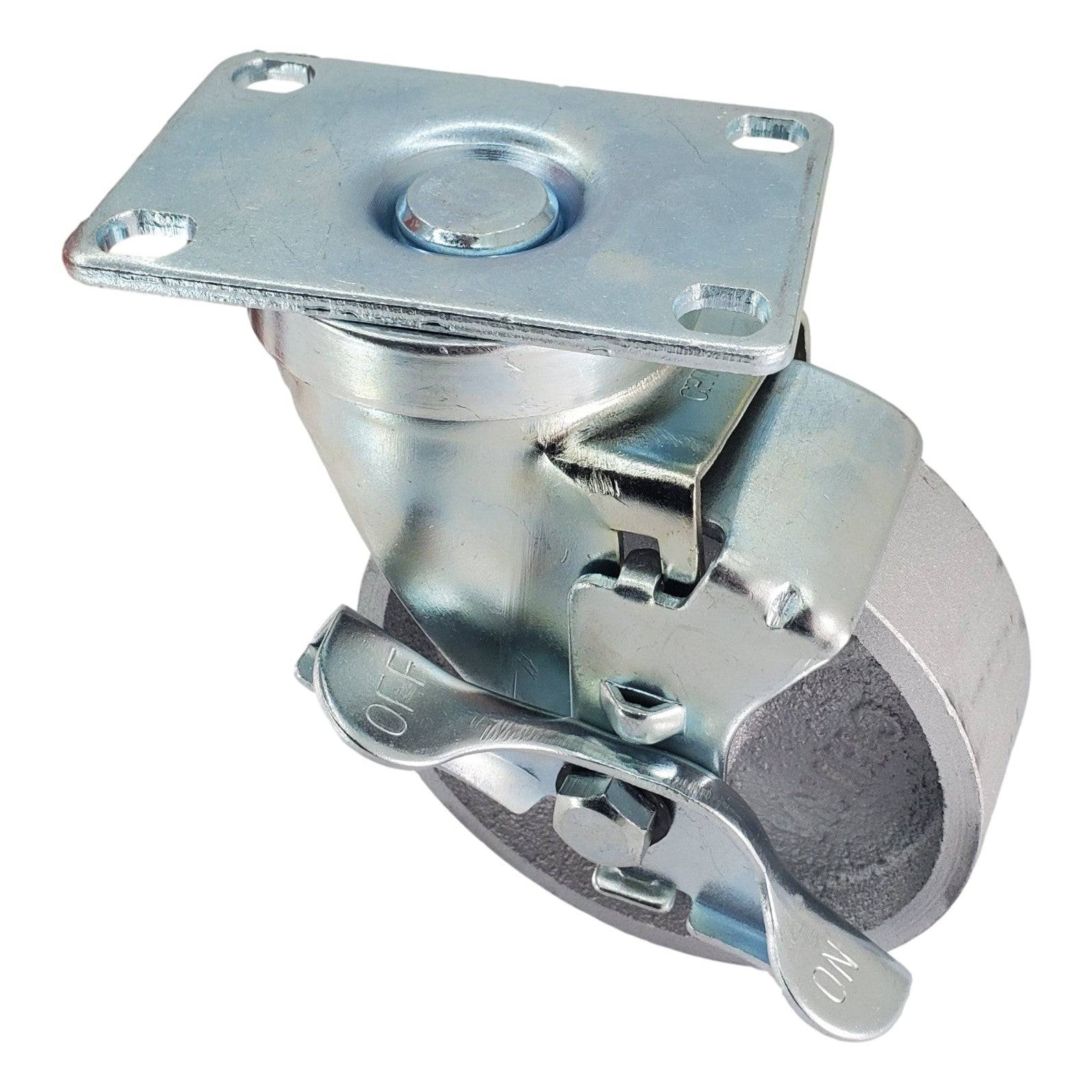

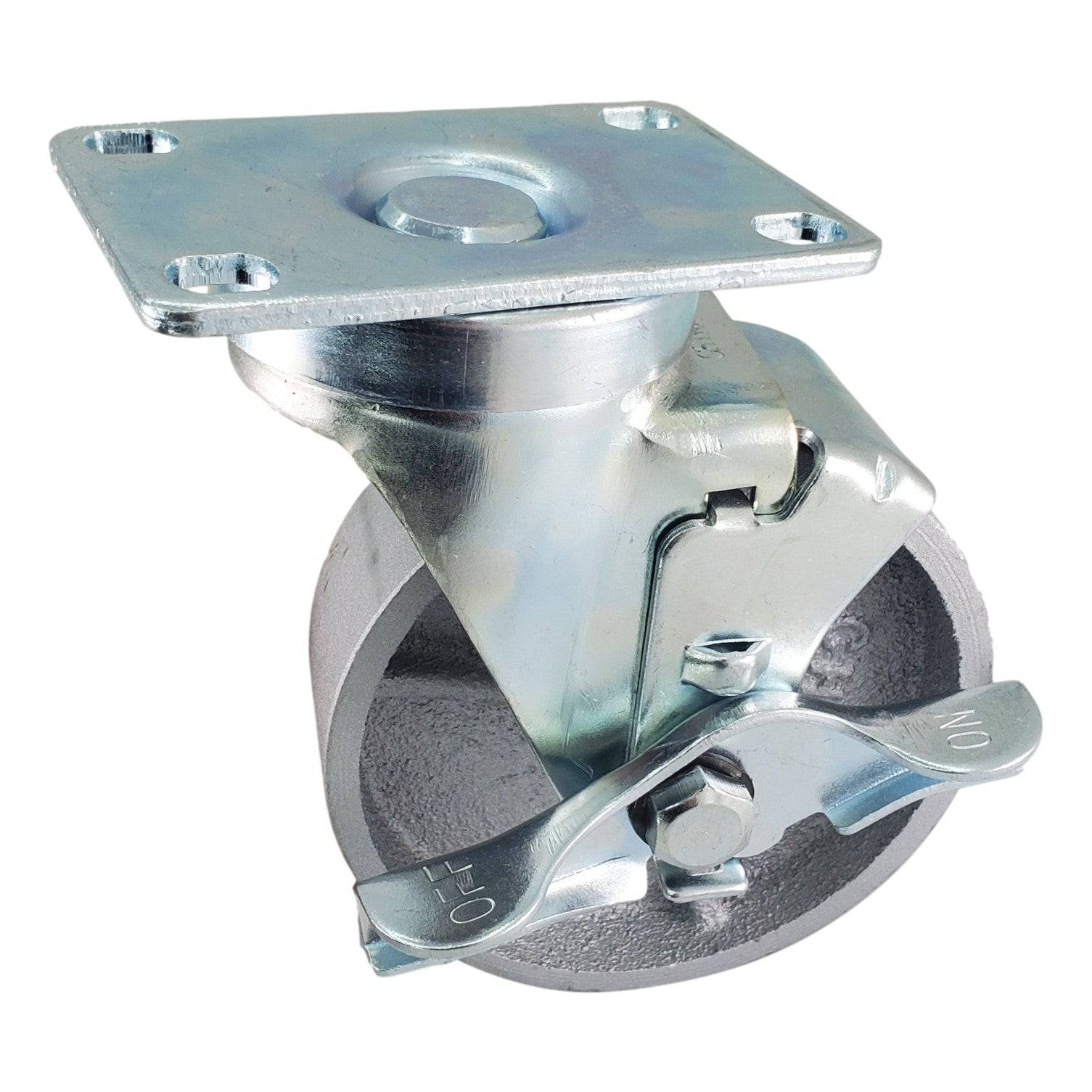

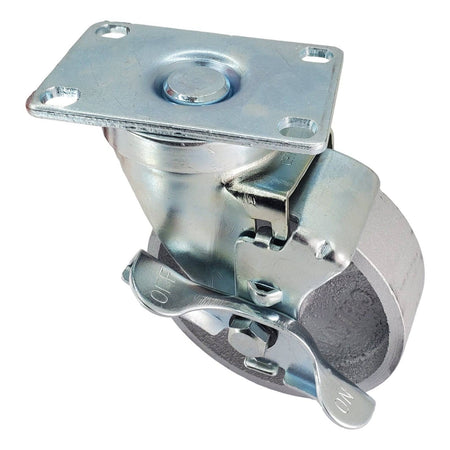

4" x 1-1/4" Semi-Steel Wheel Swivel Caster with Top Lock Brake
Semi-Steel offers a strong, durable, cost-effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. The Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.
Tread & Core: Steel Alloy
Bearing: Plain Bore
Rig: Zinc-Plated Rigid Rig With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate, Top Lock Brake
- Capacity: 300 Lbs.
- Hardness: Brinell 145
- Tensile Strength of 30,000 PSI
- Temperature Range: -45° F to 600° F
| Load Capacity | 300 Lbs. |
| Wheel Diameter | 4" |
| Tread Width | 1-1/4" |
| Tread Type | Steel Alloy |
| Core Type | Steel Alloy |
| Bearing Type | Plain Bore |
| Wheel Color | Silver |
| Overall Height | 5-1/4" |
| Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter |
5/16" |
| Lock Type | Top Lock Brake |
| Tensile Strength |
30,000 PSI |
| Temperature Range | -45° F to 600° F |
