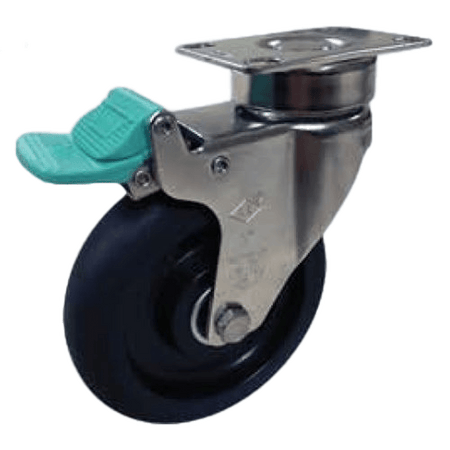

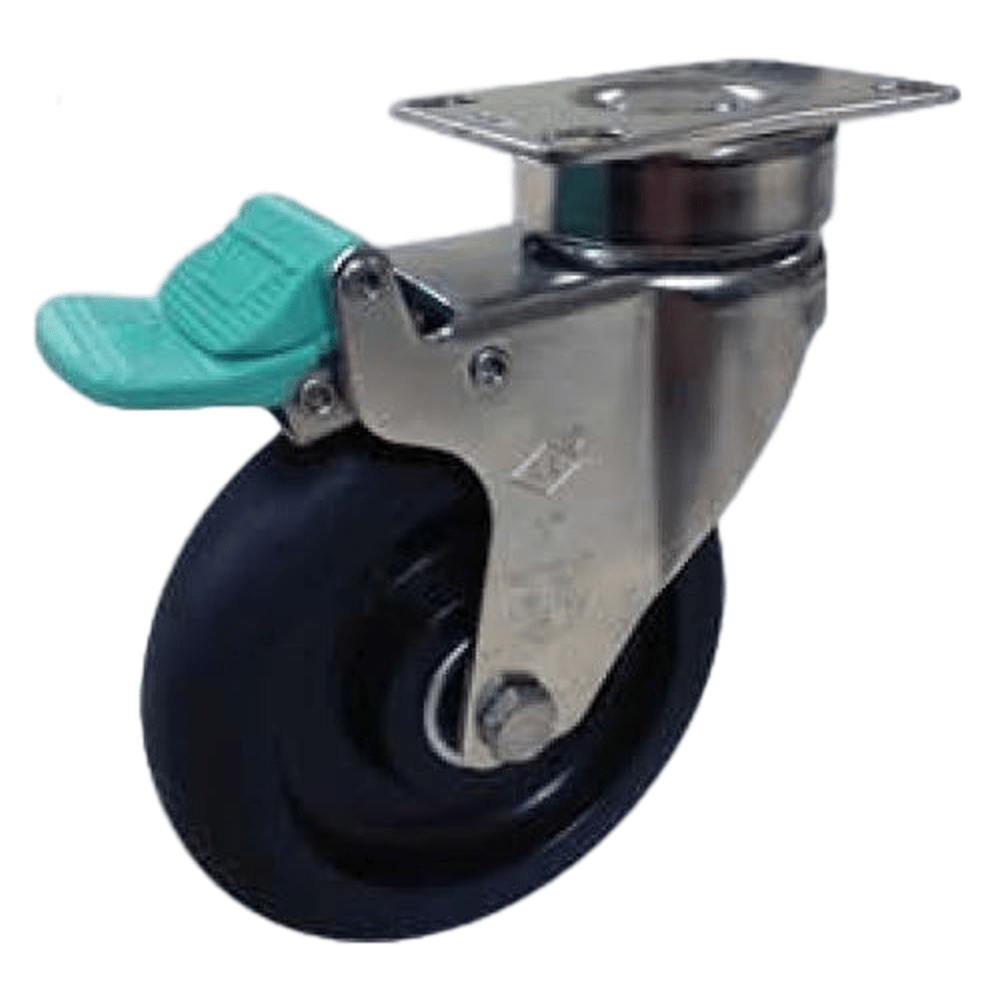

4" x 1-1/4" Soft Rubber Medical Caster S.S., Directional Swivel Lock 300# Cap
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
Product Overview
Soft rubber wheels are made of a hard rubber core with soft rubber tread allowing for shock absorption and long-lasting durability. These wheels are good for outdoor and indoor applications.
Tread: Soft Rubber On Hard Rubber Core This caster is listed with wheel diameter 4", tread width 1-1/4", load capacity 300 Lbs., tread type Soft Rubber On Hard Rubber Core, and bearing type Stainless Steel Precision Ball Bearing.
Key Features
- Load Capacity: 300 Lbs.
- Wheel Diameter: 4"
- Tread Width: 1-1/4"
- Tread: Soft Rubber On Hard Rubber Core
- Bearing: Stainless Steel Precision Ball Bearing
- Mounting Plate: 2-3/8" x 3-5/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4' x 2-7/8" slotted to 3" bolt-hole pattern
- Loads within the listed 300 Lbs rating
- Equipment using the listed 2-3/8" x 3-5/8" plate with 1-3/4' x 2-7/8" slotted to 3" bolt-hole pattern
- Applications needing the listed Soft Rubber On Hard Rubber Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 300 Lbs, the equipment requires a wheel other than 4" diameter by 1-1/4" tread width, the mounting does not match the listed 2-3/8" x 3-5/8" plate with 1-3/4' x 2-7/8" slotted to 3" bolt-hole pattern, or a different brake or lock style is required instead of Direction Swivel Lock.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 300 Lbs. |
| Wheel Diameter | 4" |
| Tread Width | 1-1/4" |
| Tread Type | Soft Rubber On Hard Rubber Core |
| Core Type | Hard Rubber |
| Bearing Type | Stainless Steel Precision Ball Bearing |
| Wheel Color | Black |
| Overall Height | 5-1/4" |
| Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4' x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Lock Type | Direction Swivel Lock |
| Durometer | Shore A 80 (+/-5) |
| Temperature Range | -40°F to 160°F |
| Model / MPN | MDSR40GB2S06YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4' x 2-7/8" slotted to 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Direction Swivel Lock.
