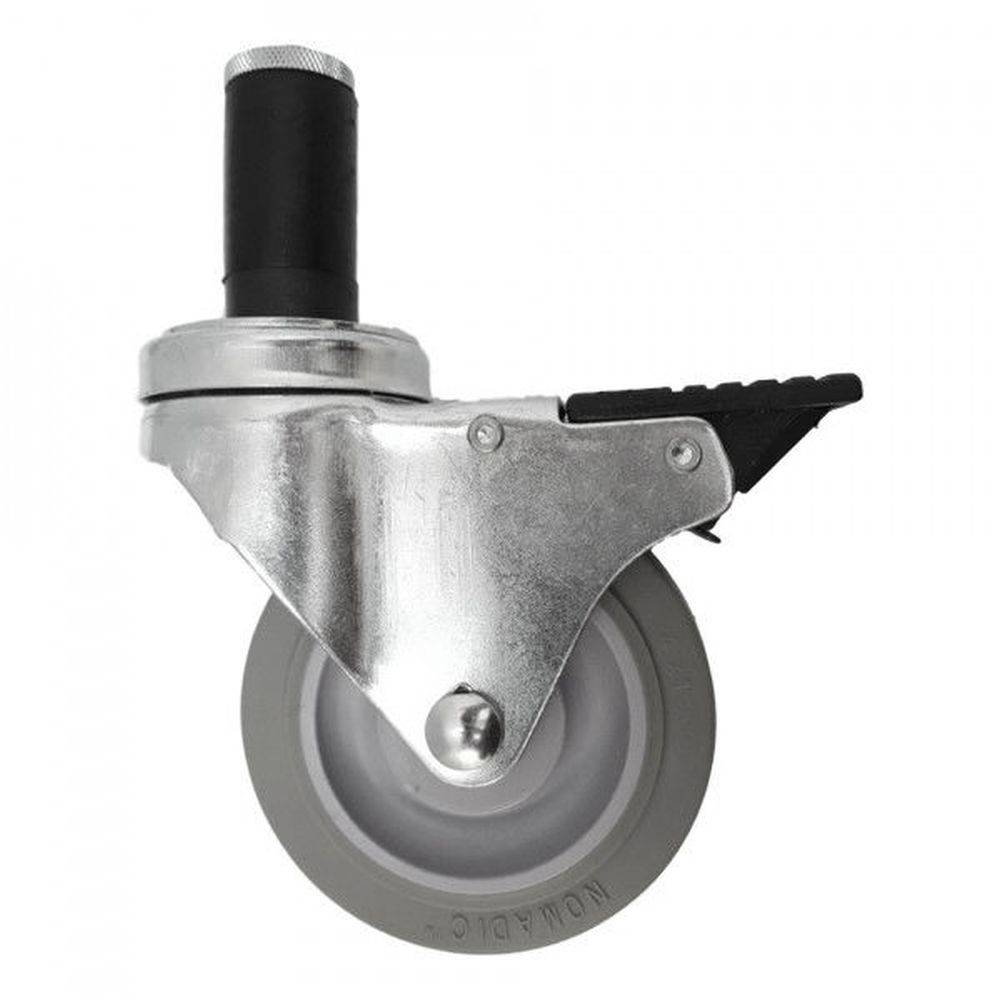

4" x 1-1/4" Nomadic Wheel Threaded Swivel Stem Caster with Expandable Adapter and Total Lock Brake
The Nomadic wheel is quiet rolling, provides a cushioned ride, and is impact-resistant, making it a great wheel for carts that carry sensitive cargo. With a flat tread, this wheel works well on hard floors, and the high-performance thermo-elastomer tread works great over bumps and thresholds. This replacement caster component is listed with wheel diameter 4", tread width 1-1/4", load capacity 260 Lbs., tread type High-Performance Thermo-Elastomer, and bearing type Annular Ball Bearing.
Key Features
- Load Capacity: 260 Lbs.
- Wheel Diameter: 4"
- Tread Width: 1-1/4"
- Tread: High-Performance Thermo-Elastomer
- Bearing: Annular Ball Bearing
- Lock Or Brake: Total Lock
Ideal For
Choose this product if you need:
- A replacement caster component matching the listed mounting and hardware dimensions
- Loads within the listed 260 Lbs rating
- Applications matching the listed 4" x 1-1/4" wheel dimensions
- Applications needing the listed High-Performance Thermo-Elastomer wheel or tread
Not Ideal For
Not ideal when a complete caster with wheel is required, the load exceeds 260 Lbs, the equipment requires a wheel other than 4" diameter by 1-1/4" tread width, or a different brake or lock style is required instead of Total Lock.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, overall height, and brake or lock style match the replacement component required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 260 Lbs. |
| Wheel Diameter | 4" |
| Tread Width | 1-1/4" |
| Tread Type | High-Performance Thermo-Elastomer |
| Bearing Type | Annular Ball Bearing |
| Wheel Color | Gray/Gray |
| Overall Height | 5-1/8" |
| Swivel Radius | 4-7/8" |
| Expandable Adapter | - 3/4" Tube Inner Diameter (0.720" - 0.851") - 7/8" Tube Inner Diameter (0.852" - 0.927") - 1" Tube Inner Diameter (0.928" - 1.029") - 1-1/8" Tube Inner Diameter (1.030" - 1.140") - 1-3/8" Tube Inner Diameter (1.360" - 1.425") - 1-1/2" Tube Inner Diameter (1.426" - 1.589") - 1-7/8" Tube Inner Diameter (1.790" - 1.850") |
| Lock Type | Total Lock |
| Durometer | Shore A 65 (+/-5) |
| Temperature Range | -45° F to 180° F |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| T3NM40GI4373YY | Adapter Size: 1" Tube I.D. |
| T3NM40GI4372YY | Adapter Size: 7/8" Tube I.D. |
| T3NM40GI4371YY | Adapter Size: 3/4" Tube I.D. |
| T3NM40GI4375YY | Adapter Size: 1-3/8" Tube I.D. |
| T3NM40GI4374YY | Adapter Size: 1-1/8" Tube I.D. |
| T3NM40GI4376YY | Adapter Size: 1-1/2" Tube I.D. |
| T3NM40GI4377YY | Adapter Size: 1-7/8" Tube I.D. |
Frequently Asked Questions
What is this product used for?
Use it when you need a replacement caster component matching the listed mounting and hardware dimensions.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Total Lock.
