Product Overview

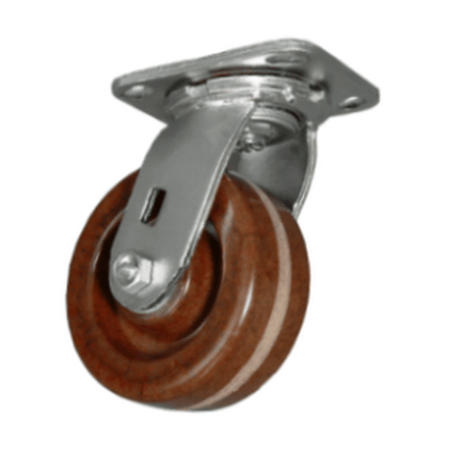

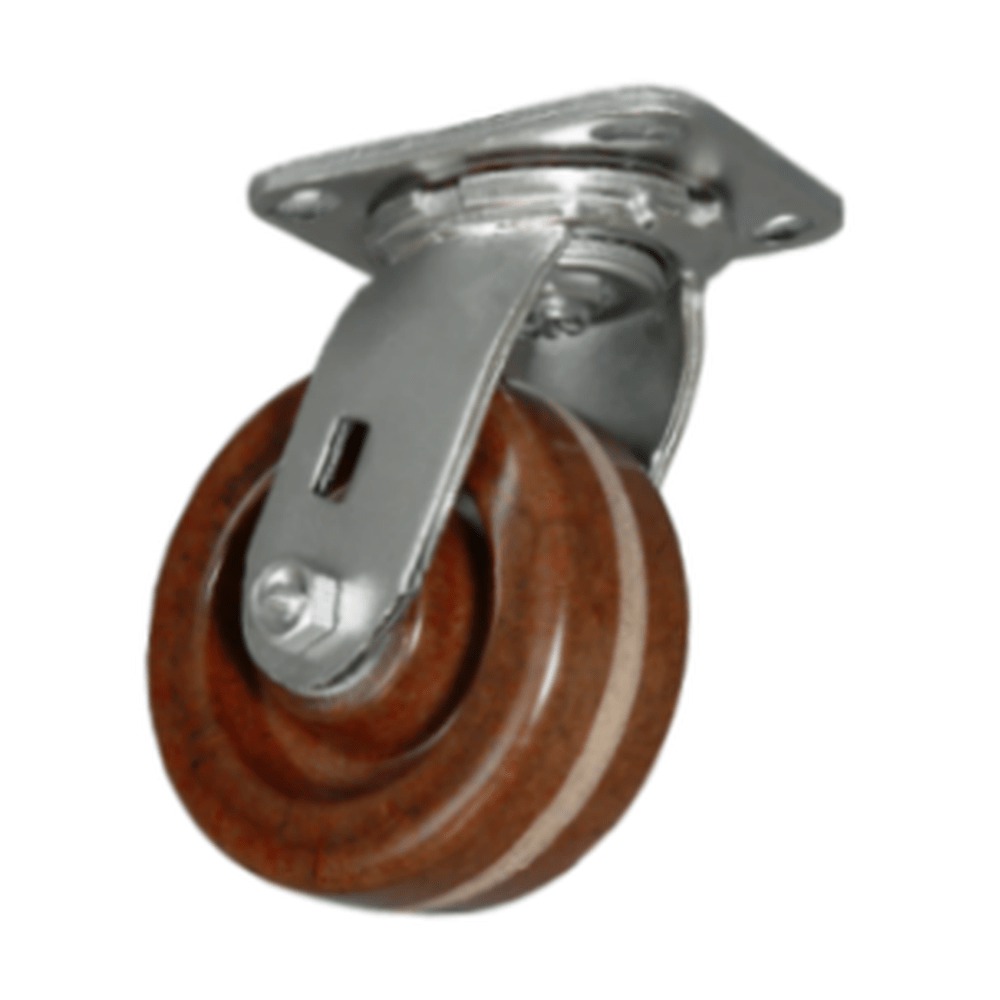

The high-temperature phenolic wheel combines phenolic resin and macerated canvas, making it ideal for dry heat applications. It has exceptional resistance to oil, grease, and most acids, chemicals, and cleaning solutions.
Tread & Core: Phenolic Resin With Macerated Canvas This caster is listed with wheel diameter 4", tread width 2", load capacity 600 Lbs., tread type Phenolic Resin With Macerated Canvas, and bearing type Roller Bearing.
Key Features
- Load Capacity: 600 Lbs.
- Wheel Diameter: 4"
- Tread Width: 2"
- Tread: Phenolic Resin With Macerated Canvas
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 600 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Phenolic Resin With Macerated Canvas wheel or tread
Not Ideal For
Not ideal when the load exceeds 600 Lbs, the equipment requires a wheel other than 4" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 600 Lbs. |
| Wheel Diameter | 4" |
| Tread Width | 2" |
| Tread Type | Phenolic Resin With Macerated Canvas |
| Core Type | Phenolic Resin With Macerated Canvas |
| Bearing Type | Roller Bearing |
| Wheel Color | Brown |
| Overall Height | 5-5/8" |
| Swivel Radius | 3-1/4" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore D 95 (+/-5) |
| Temperature Range | -40°F to 475°F continuous, 525°F intermittent |
| Model / MPN | 27HT40JQ0417YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -40°F to 475°F continuous, 525°F intermittent.
