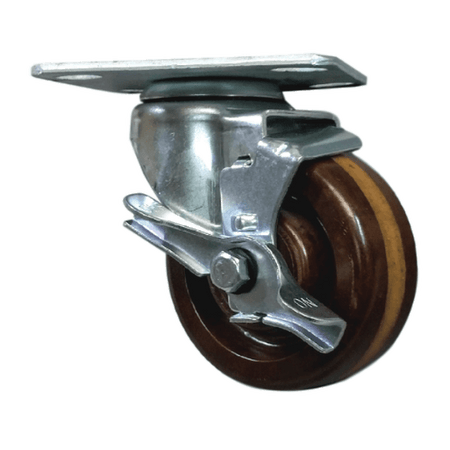

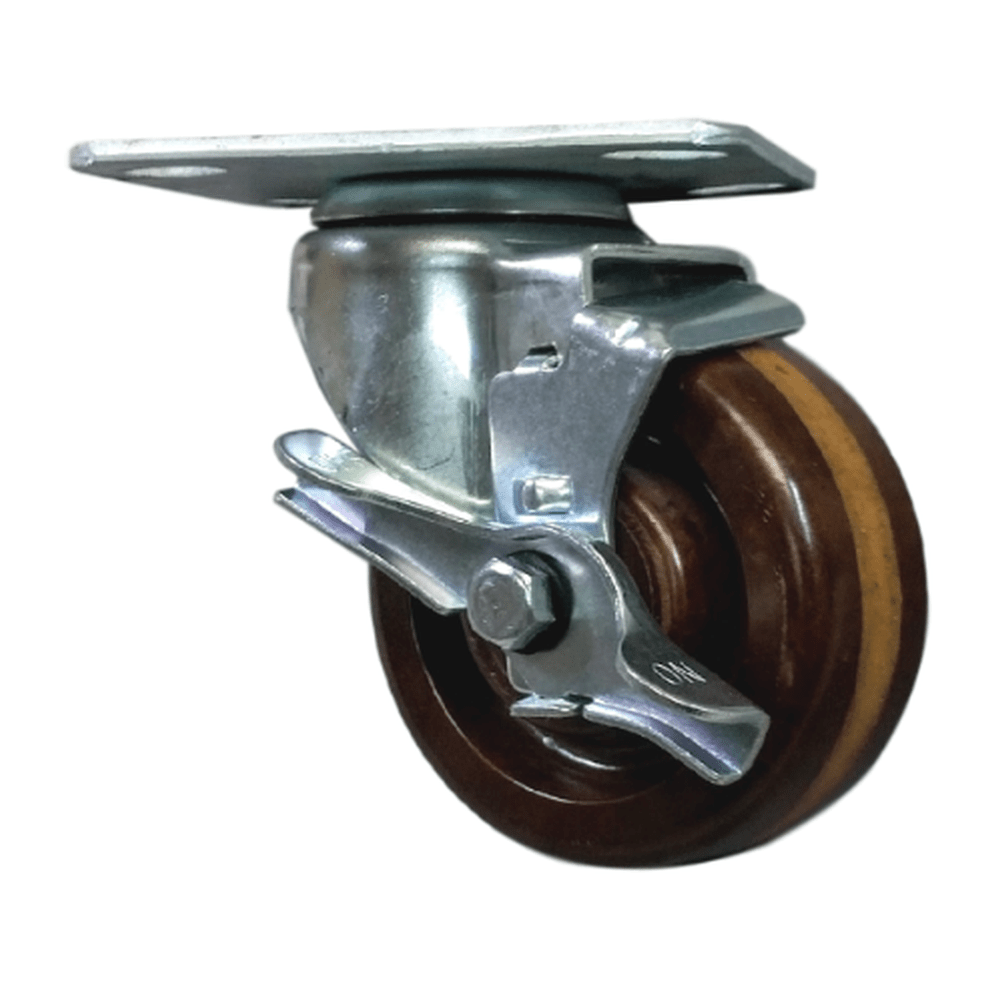

4" x 2" High Temp. Phenolic Swivel Caster, Top Lock Brake (Zinc Plated) - 600 lbs. Cap.
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
4" x 2" High Temp Phenolic Wheel Swivel Caster w/ Top Lock Brake
The high temp phenolic wheel combines phenolic resin and macerated canvas, making it ideal for dry heat applications. It has exceptional resistance to oil, grease, and most acids, chemicals, and cleaning solutions.
Tread & Core: Phenolic Resin With Macerated Canvas
Bearing: Roller Bearing
Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top Lock Brake
- Capacity: 600 Lbs.
- Color: Brown
- Durometer: Shore D 95 (+/-5)
- Temperature Range: -40°F to 475°F continuous, 525°F intermittent
| Load Capacity | 600 Lbs. |
| Wheel Diameter |
4" |
| Tread Width |
2" |
| Tread Type |
Phenolic Resin With Macerated Canvas |
| Core Type |
Phenolic Resin With Macerated Canvas |
| Bearing Type | Roller Bearing |
| Wheel Color | Brown |
| Overall Height | 5-5/8" |
| Swivel Radius | 3-1/4" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore D 95 (+/-5) |
| Temperature Range | -40°F to 475°F continuous, 525°F intermittent |
