Product Overview
Optimize your business equipment handling with our Heavy-Duty 3" Rigid Caster, tailor-made for reliable stationary and straight-line applications. This caster is ideal for office and industrial settings requiring fixed pathways.
Constructed with a "MaxRok" glass-filled nylon wheel, it provides a sturdy support base and smooth mobility. The rigid design ensures stable and secure positioning of heavy equipment without swiveling, making it ideal for environments requiring consistent alignment. This caster is listed with wheel diameter 3 in, tread width 1.81 in, load capacity 1100 lbs, bearing type Roller, and plate size 4"x4.5".
Key Features
- Load Capacity: 1100 lbs
- Wheel Diameter: 3 in
- Tread Width: 1.81 in
- Bearing: Roller
- Mounting Plate: 4"x4.5"
Ideal For
Choose this product if you need:

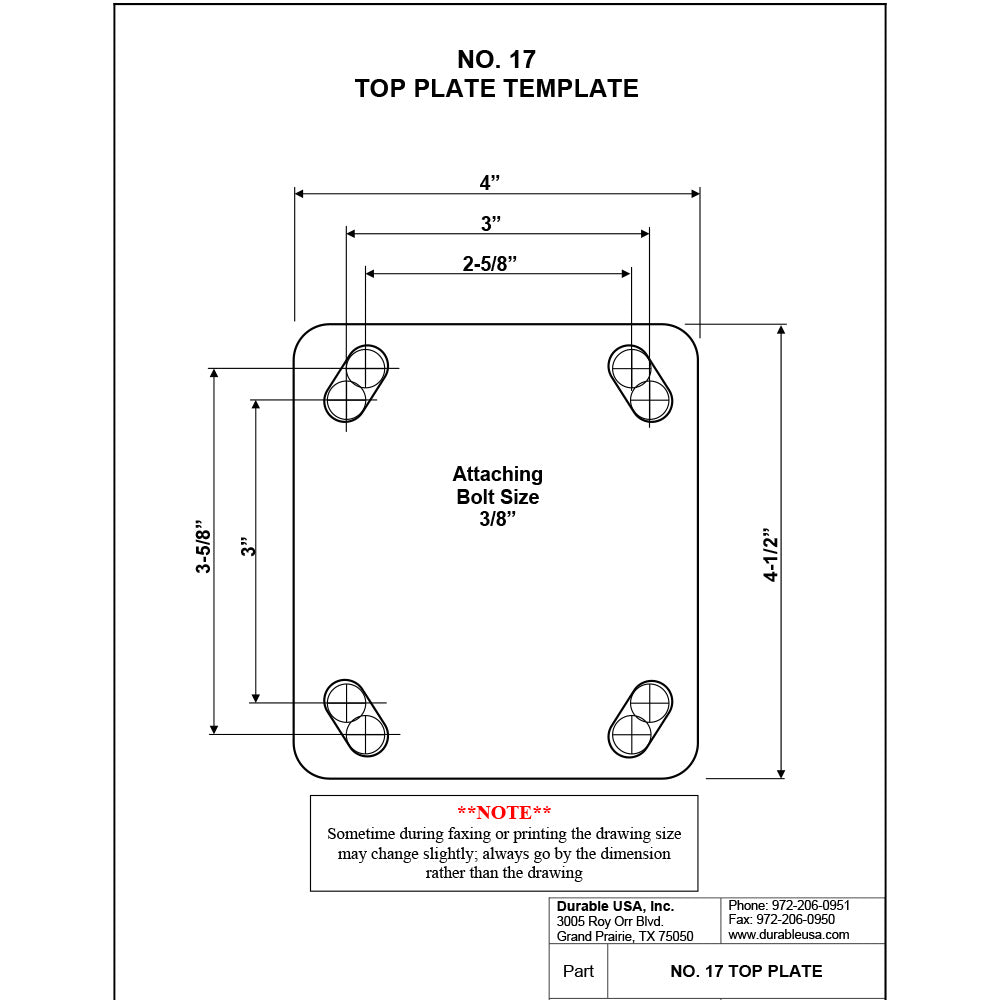

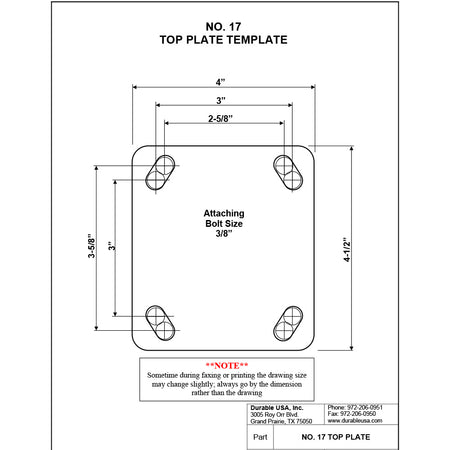

- A caster matching the listed wheel specifications and 4"x4.5" plate with 2.63"x3.63" to 3"x3" bolt-hole pattern
- Loads within the listed 1100 lbs rating
- Equipment using the listed 4"x4.5" plate with 2.63"x3.63" to 3"x3" bolt-hole pattern
- Replacements requiring the listed Roller
Not Ideal For
Not ideal when the load exceeds 1100 lbs, the equipment requires a wheel other than 3 in diameter by 1.81 in tread width, the mounting does not match the listed 4"x4.5" plate with 2.63"x3.63" to 3"x3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Feature | Specification |
| Wheel Diameter | 3 in |
| Tread Width | 1.81 in |
| Color | Black |
| Bearing Type | Roller |
| Plate Size | 4"x4.5" |
| Bolt Hole Pattern | 2.63"x3.63" to 3"x3" |
| Load Capacity | 1100 lbs |
| Model / MPN | 06MA30IB0817YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4"x4.5" plate with 2.63"x3.63" to 3"x3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What bearing does it use?
The source lists Roller.
