3" x 1-1/4" Ultra Flex Donut Light/Medium Duty Swivel Caster - 13UX30GO6206YY
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
Product Overview

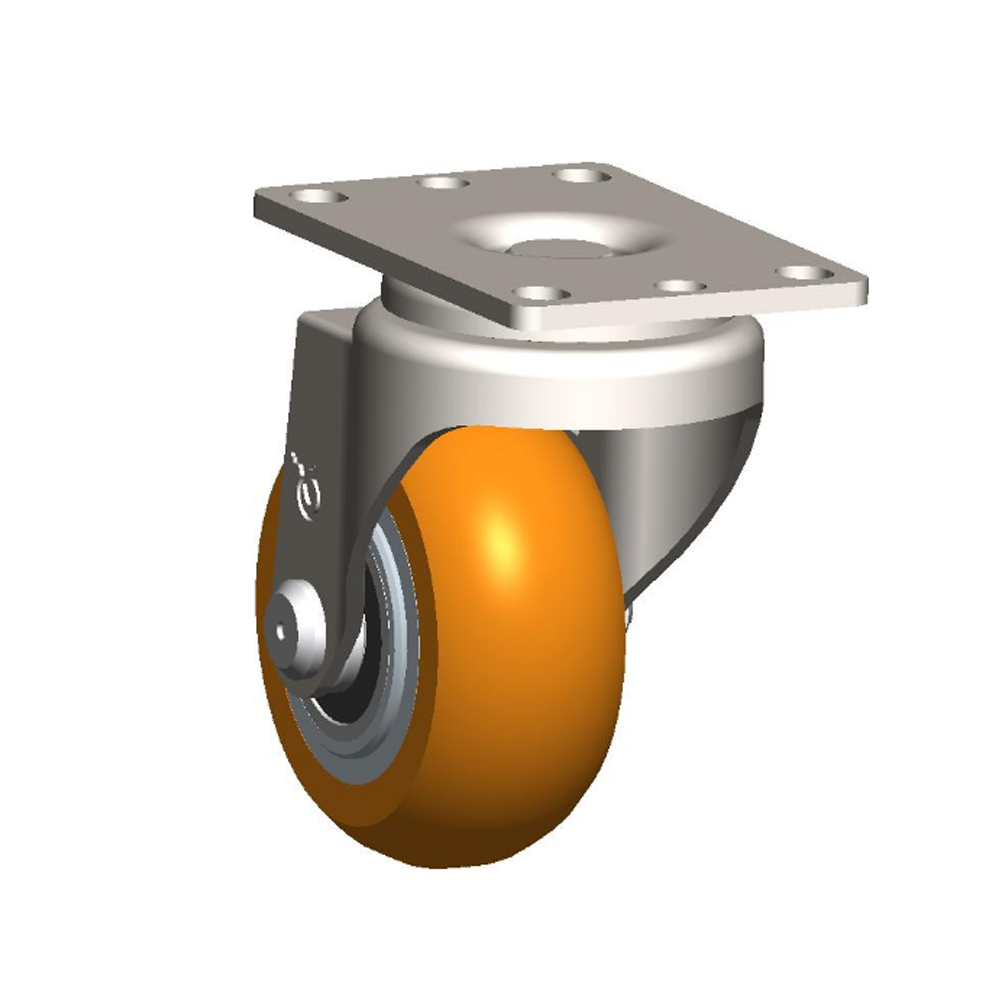

Light/medium duty swivel casters, "UltraFlex" donut tread ergonomic polyurethane/aluminum wheel, 3" o.d., 1-1/4" tread w., orange, 6202 w/ 3/8" i.d. top hats, 2-3/8"x3-5/8" (bolt 1-3/4"x2-7/8" to 3") plate (13UX30GO6206YY)
This caster is listed with wheel diameter 3", tread width 1-1/4", bearing type Sealed Precision Ball Bearing, and plate size 3-5/8" x 2-3/8".
Key Features
- Wheel Diameter: 3"
- Tread Width: 1-1/4"
- Bearing: Sealed Precision Ball Bearing
- Mounting Plate: 3-5/8" x 2-3/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 3-5/8" x 2-3/8" mounting plate
- Equipment using the listed 3-5/8" x 2-3/8" mounting plate
- Replacements requiring the listed Sealed Precision Ball Bearing
Not Ideal For
Not ideal when the equipment requires a wheel other than 3" diameter by 1-1/4" tread width, the mounting does not match the listed 3-5/8" x 2-3/8" mounting plate, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, bearing, mounting plate, and overall height match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 3" |
| Tread Width | 1-1/4" |
| Weight Capacity | 350 lbs. |
| Overall Height | 4-1/8" |
| Bearing Type | Sealed Precision Ball Bearing |
| Plate Size | 3-5/8" x 2-3/8" |
| Model / MPN | 13UX30GO6206YY |
| Tread Material | Polyurethne Elastomer |
| Core | Aluminum |
| Color | Orange/Silver |
| Bearing Size | 3/8" I.D. Top Hats |
| Hub Length | 1-5/8" |
| Axle / Bore Diameter | 3/8" |
| Kingpin Size | 1/2" |
| Plate Bearing | Double Ball Bearing Raceways |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 3-5/8" x 2-3/8" mounting plate.
What should I check before ordering?
Confirm the wheel diameter, tread width, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What bearing does it use?
The source lists Sealed Precision Ball Bearing.
